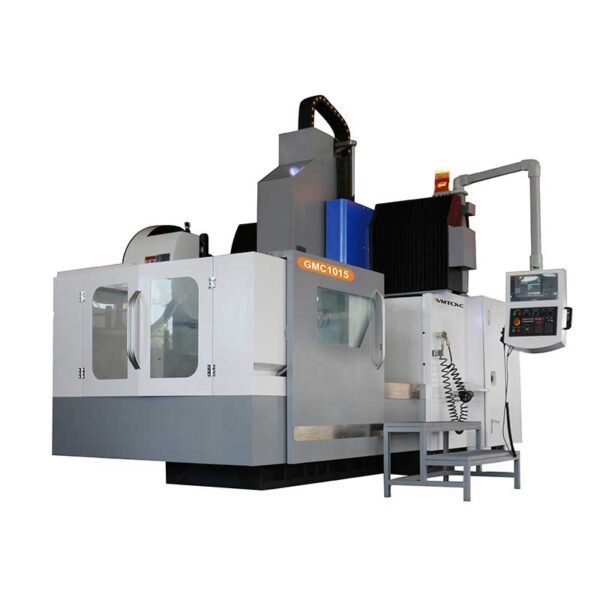

WMT CNC GMC1015 Gantry CNC Milling ເຄື່ອງ (40kVA)

Worktable size: 1600×800mm

T-slot: 22×5×140mm

Max. loading of worktable: 1800kg

Double column width: 950mm

Spindle nose to table distance: 180-800mm

Rail type: Linear Guideway

Spindle taper: BT50-155

Spindle speed: 8000rpm

Main motor power: 18.5/15kw

X axis travel: 1500mm

Y axis travel: 1000mm

Z axis travel: 620mm

X/Y/Z rapid traverse: 20/20/15m/min

Max.weight of tool: 15kg

Max.feed speed: 10000mm/min

Power: 40kVA

Overall dimension(LxWxH): 4800×4600×4400mm

Weight: 15000kg
