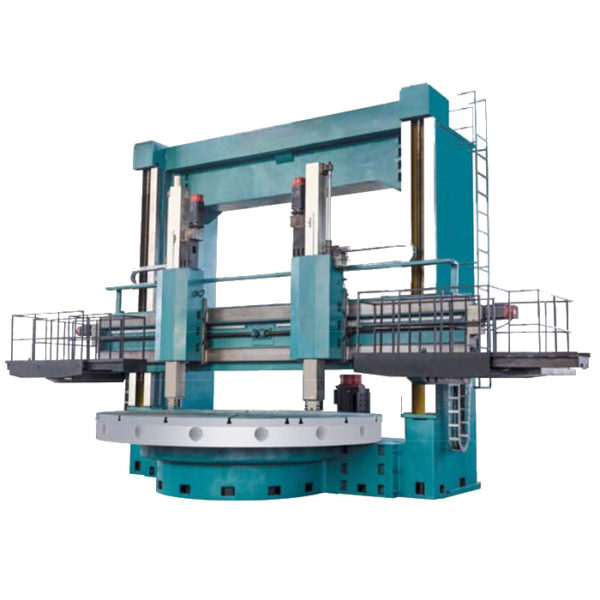

WMT CNC DVT5240 ເຄື່ອງກັ່ນແນວຕັ້ງ (72KW)

Table dia. : 3200mm

Max. turning dia.: 4000mm

Max. workpiece height: 1600mm

Max. workpiece weight: 20T

Max. tool size: 50mm

Right toolpost max. cutting force: 35000N

Left toolpost max. cutting force: 30000N

Total cutting force: 43000N

Worktable max. torque: 63000N.m

Worktable speed steps: 16 steps

Worktbale speed range: 2-63r/min.

Toolpost feeding range: 0.1-500mm/min

Right toolpost travel (horizontal/vertical): 2200/1000mm

Left toolpost travel (horizontal/vertical): 2200/1000mm

Slider section: 240x240mm

Left/right toolpost fast moving speed: 2000mm/min.

Cross beam max. travel: 1400mm

Corss beam up/down speed:350mm/min.

Main motor power: 55kw

Cross beam up/dowm motor power: 11KW

Left/right toolpost feeding motor torque: 27N.m (Beijing CTB servo motor)

Total power of the machine: 72KW

Machine weight: 40T

Machine size: 7200x5400x5200MM
