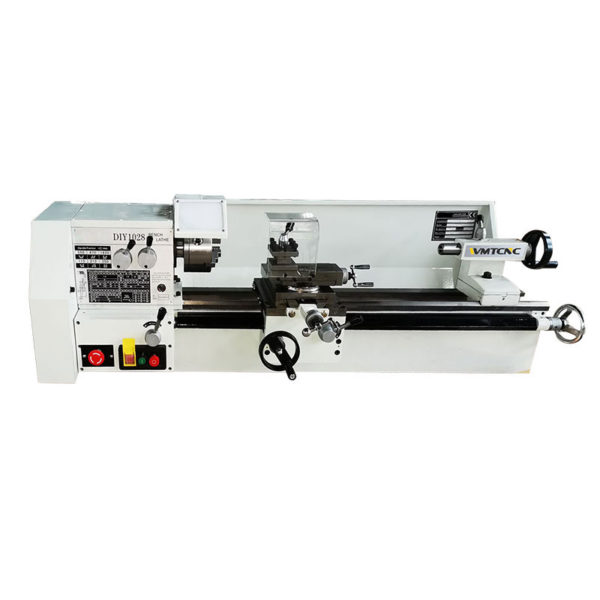

WMT CNC DIY1028 Bench Lathe (750w)

Distance between centers: 450/700mm

Swing over bed: Φ250mm

Taper of spindle bore: MT4

Spindle bore: Φ27mm

Step of spindle speeds: 6 steps

Range of spindle speeds: 115-1620rpm

Range of inch threads: 8-56T.P.I

Range of metric threads: 0.2 -3.5mm

Travel of cross slide: 140mm

Taper of tailstock quill: MT3

Main Motor: 750w

Packing size: 1260/1510×570×580mm

Net /gross weight: 151/171kgs
