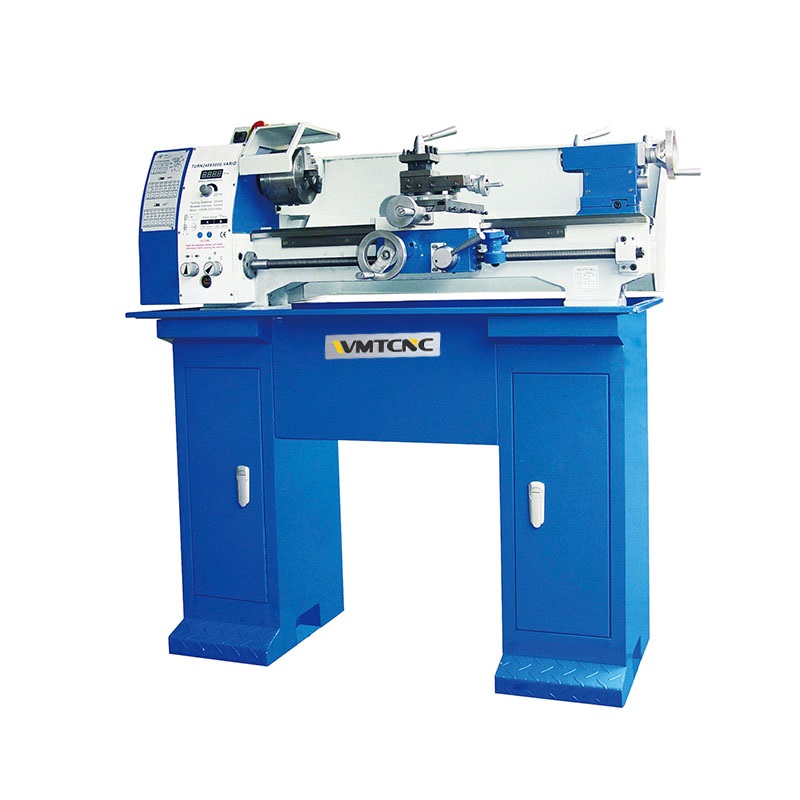

WMT CNC D280V ເຄື່ອງກຶງຕົວແປ (1500W)

Max. swing over bed: φ280mm

Distance between centers: 700mm

Swing over cross slide: 125mm

Width of bed: 180mm

Spindle bore: 26mm

Taper of spindle bore: MT4

Range of spindle speeds(variable speed): 50-2500rpm

(6 steps): 150 300 600 500 1000 2000rpm

Metric threads can be cut: 0.2-4mm

Inch threads can be cut: 8-56TPI

Top slide travel: 70mm

Cross slide travel: 140mm

Tailstock quill travel: 70mm

Taper of tailstock quill: T2

Motor power: 1500W

NW/GW: 200/230kg

Packing size(LXWXH): 1450X700X680mm
