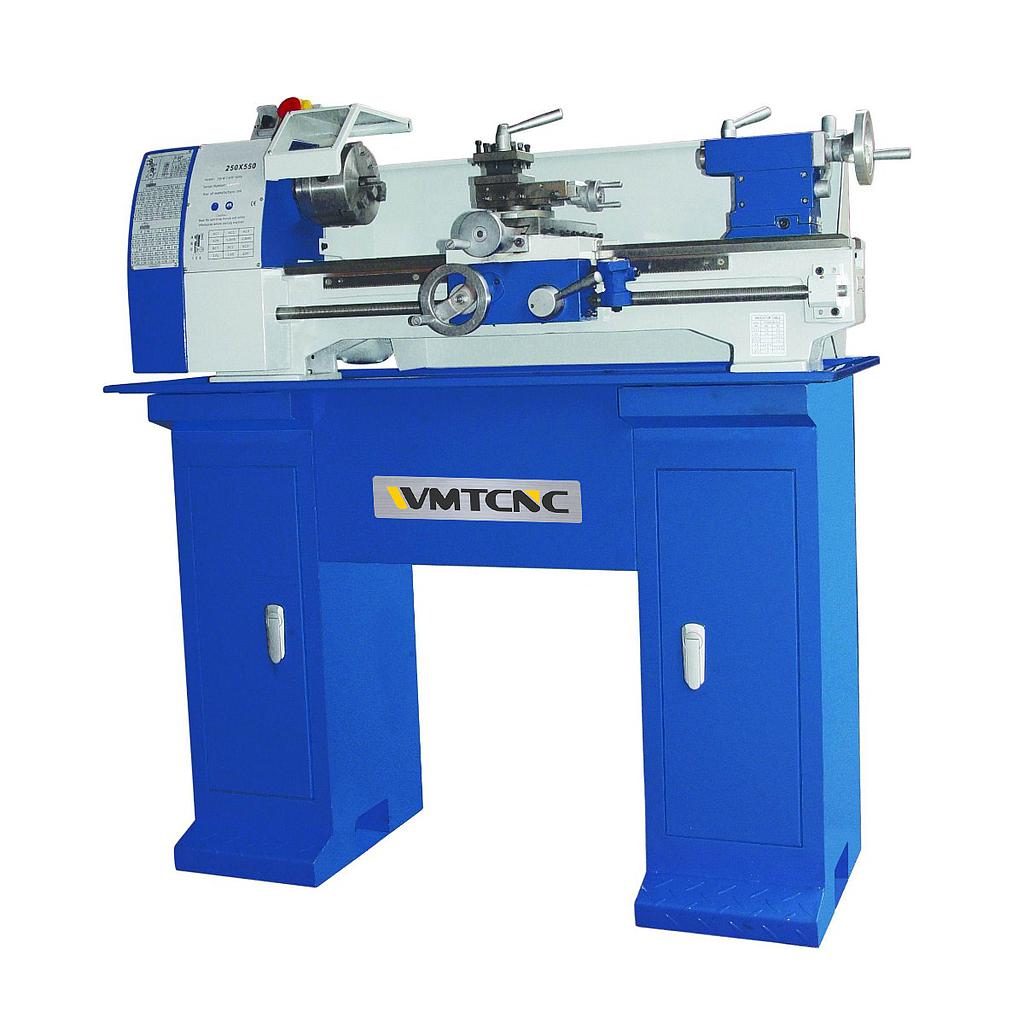

WMT CNC D250V ເຄື່ອງກຶງຕົວແປ (750W)

Swing over bed: 250mm

Swing over cross slide: 150mm

Distance between centers: 550/750mm

Width of bed: 135mm

Spindle bore: 26mm

Spindle taper: MT4

Spindle speed: Variable:50-2500rpm

Number of metric threads: 0.2-4mm

Tool post type: 4-poition

Maximum carriage slide travel: 135mm

Maximum carriage travel: 450/650mm

Tailstock spindle travel: 60mm

Taper in tailstock spindle: MT2

Main motor: 750W

Weight: 125kg/135kg

Machine size(LXWXH): 1150/1350X480X500mm

Dimension: 1220X560X560mm/1400X560X560mm
