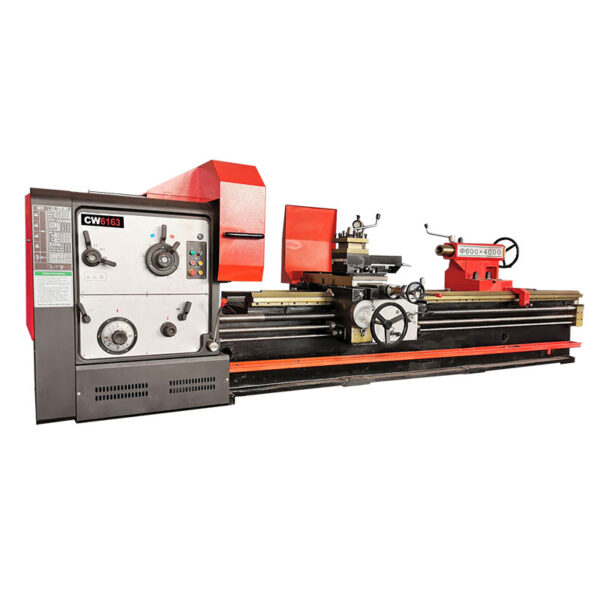

WMT CNC CW6163B Heavy Duty Big Lathe (11kW)

Swing over bed: 630mm

Swing over toolpost: 350mm

Swing over gap: 1300mm

Center distance: 1000mm 1500mm 3000mm 5000mm

Spidle bore size and spindle type: φ120mm, D11

Spindle nose taper and center taper: φ140, MT5

Spindle speed kinds and range: 18 kinds, 5.4-720r/min

Longitudinal Feeding speed and range: 64 kinds 0.06-24.3mm/r

Range 1:1: 0.1-1.52mm/r

Range 16:1: 1.6–24.3mm/r

Micro feeding with change gears: 0.05-0.76mm/r

Ratio of cross feeding and longitudinal feeding: 1:02mm

Bed fast moving: 4000mm/min

Leadscrew pitch: Metric 12 inch 1/2”

Metric thread range: 50kinds 1-240mm

Inch thread range: 26 kinds 14-1t.p.i

Module thread range: 53 kinds 0.5-120mm

Pitch thread range: 24kinds 28-1mm DP

Max. travel of Upper toolpost: 315mm

Max. travel of Lower toolpost: 200mm

Tailstock travel: 250mm

Tailstock taper: MT5

Main Motor power: 11kW

Fast moving motor power: 1.1kW

Coolant pump power: 90W

Bed width: 550mm

Bed hardness: 600RC52

Max. Loading weight: 1500kg
