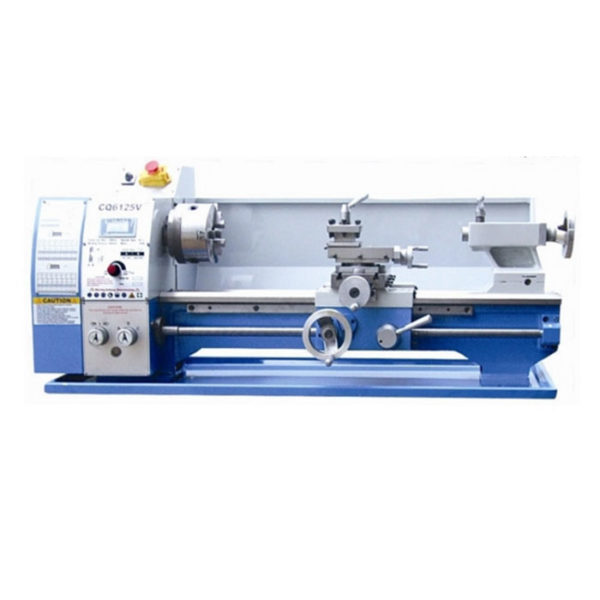

WMT CNC CQ6125 Bench Lathe (550w)

Model: 400/550/750(16＂/22＂30＂)

Swing over bed: 250mm

Width of bed: 135mm

Spindle bore: 21mm

Taper of spindle bore: MT3

Range of spindle bore: 125-2000rpm

Taper of tailstock quill: MT2

Range of metric threads: 0.1-2.5mm

Range of longituainal speeds: 0.10-0.20mm/rev

Cross slide travel: 115mm

Max.travel of tailstock quill: 65mm

Motor power: 550w

Packing size: 1150×560×570mm

N.W: 120kg
