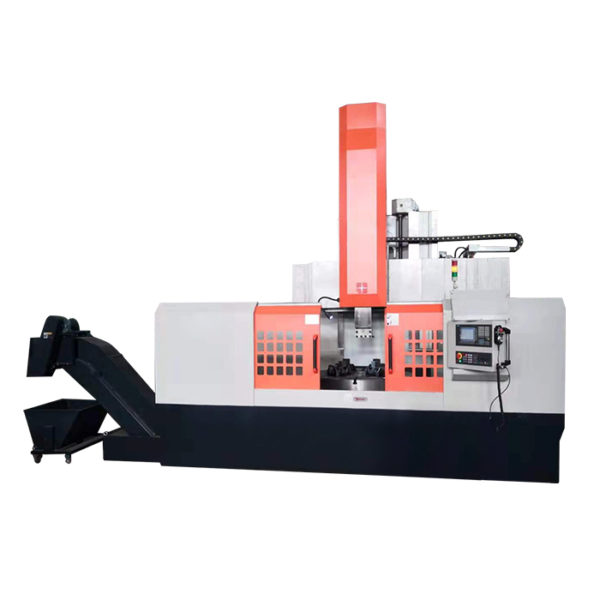

WMT CNC CK5116 CNC Vertical Lathe

Table dia.: 1400mm

Max. turning dia.: 1600mm

Max. workpiece height: 1000/1200/1400/1600mm

Max. workpiece weight: 5(8)t

Table speed step: 16

Table rotation speed range: 5-160(6.3-200)r/min

Horizontal travel of toolpost (X-axis): 915mm

Vertical travel of toolpost (Z-axis): 800/1000mm

Crossarm travel: 850mm

Main motor power: 30kW

N.W: 12.6/13.3/14/14.6t

Overall size(LXWXH): 2662x2800x3350/3550/3750/3950mm
