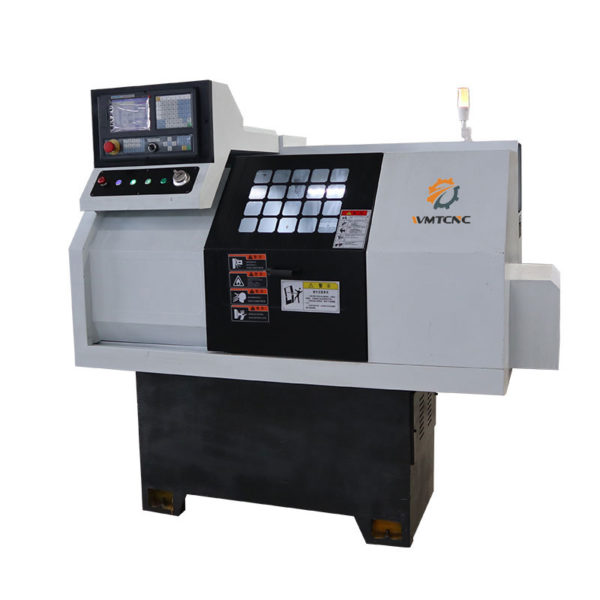

WMT CNC CK0640 ເຄື່ອງກຶງ CNC Bed Flat (260mm)

Max.swing over bed: 260mm

Diameter of X axis ballscrew: 25mm

Thread pitch of X axis ballscrew: 4mm

Diameter of Z axis ballscrew: 32mm

Thread pitch of Z axis ballscrew: 6mm

X-axis travel: 250mm

Z-axis travel: 180mm

Pneumatic chuck: 32mm

Toolpost: 4 position electrical toolpost

Main Motor: 3kw

Motor for Coolant pump: 90W

Spindle bore: 49mm

Spindle hole after install pneumatic: 41.5mm

positioning accuracy: 0.01mm

Servo motor torque: 4.0NM

CNC controller system: after 980MDC

Machine size: 1760x1070x1730mm

G.W: 700kg
