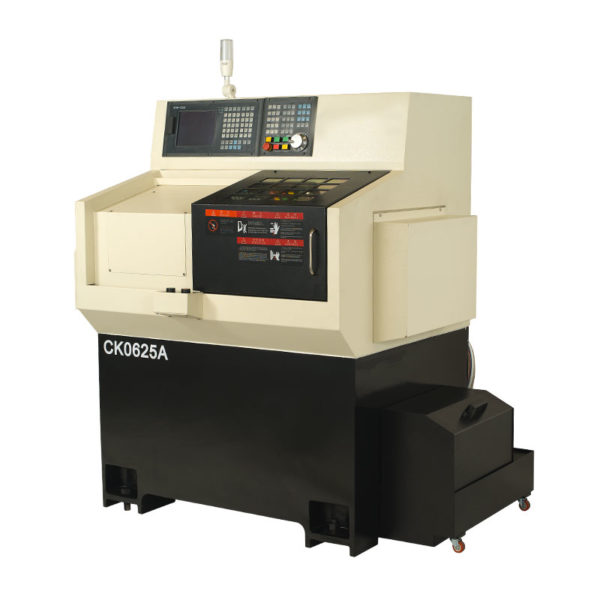

WMT CNC CK0625A ເຄື່ອງກຶງ CNC Bed Flat

Spindle

Max. bar throught hole: Φ25mm

Spindel through diameter: Φ26mm

Max. revolving dia.: Φ300mm

Spindle center height from the ground: 930mm

Spindle speed range: 0-5000r/min

Spindle motor power: 2.2kw

Stroke

X stroke: 400mm（Diameter value）

Z stroke: 180mm

X axis servo motor power: 0.75kw

Z axis servo motor power: 0.75kw

Guideway: Linear guideway

CNC

Minimum setting unit: 0.001mm

Minimum moving unit X: 0.0005mm

Minimum moving unit Z: 0.001mm

Cutting speed: 1–4000mm/min

X rapid travel speed: 18000mm/min

Z rapid travel speed: 20000mm/min

Gang type: 6

Tool shank size: 16*16

Cutting motor power: 0.09kw

Capacity of coolant container: 120L

Motor power: 25w

Capacity: 1L

Input air pressure: 0.4–0.6Mpa

L*W*H: 1405*1050*1650

Weight: 900kg
