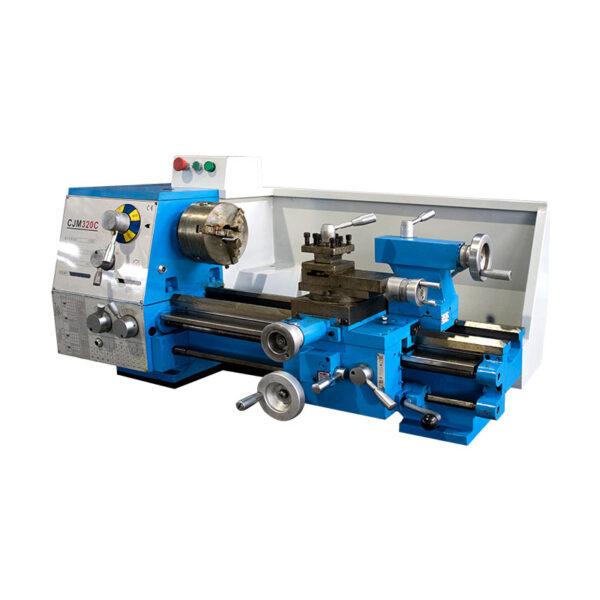

WMT CNC CJM320C Bench Lathe (1100W)

Max. swing over the bed: 320mm

Max. length of work piece: 500/750mm

Max. swing over cross slide: 180mm

Max. cross slide travel: 160mm

Max. longitudinal stroke over tool post: 75mm

Spindle bore: 38mm

Spindle taper: MT5

Spindle speeds range: 8 steps: 90-1800r/min

Metric thread kinds: 18

Metric pitches: 0.20-3.5mm

Inch threads kinds: 34

Inch pitches: 41/2-48 1/n”

Longitudinal-feed range: 0.08-0.56mm/r

Cross-feedrange: 0.04-0.28mm/r

Tailstock quill travel: 60mm

Tailstock quill taper: MT3

Motor: 1100W

N.W/G.W: 300/350kg

Packing size: (L×W×H): 1500*700*1300mm
