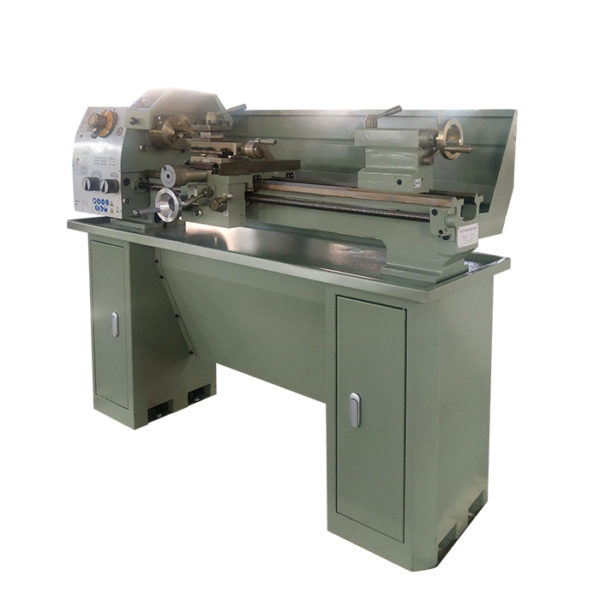

WMT CNC CJM280A Bench Lathe (750W)

Distance between centers: 550mm/610mm/815mm

Max.swing over bed: 280mm

Width of bed: 150mm

Max.Length of work piece: 500mm/560mm/765mm

Swing over middle carriage: 160 mm

Spindle bore: 26mm

Main spindle taper: MT4

Max.Cross stroke of toolpost: 130mm

Max.Long stroke of top toolpost: 65mm

Max.stroke of tailstock sleeve: 60mm

Tailstock taper: MT2

Main Spindle speed steps: 12

Main Spindle speed: 80~1600r/mim 45~2000转

Motor power: 750W one or three phase

Packing size: 1165×580×620mm
