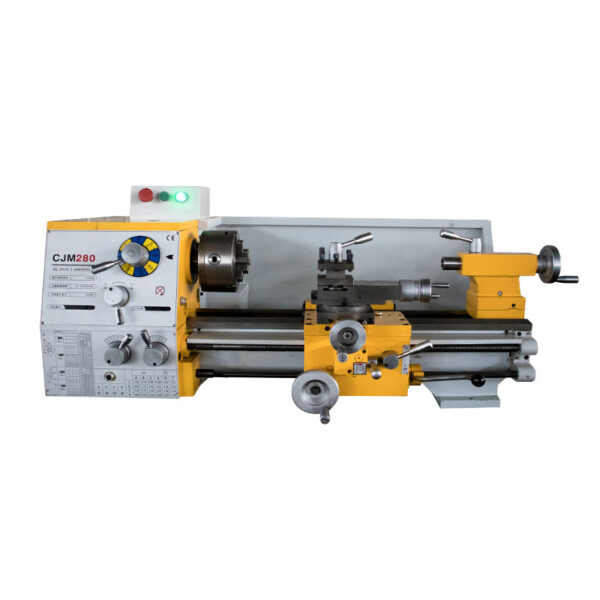

WMT CNC CJM280 Bench Lathe (750W)

Max. swing over the bed: 280mm

Max. length of workpiece: 500mm, 750mm

Max. swing over cross slide: 160mm

Spindle bore: 38mm

Spindle taper: MT5

Max. cross slide travel: 140mm

Max. longitudinal stroke over tool post: 75mm

Metric thread kinds: 18

Metric pitches: 0.2-3.5mm

Inch threads kinds: 34

Inch pitches: 41/2-48 1/n”

Longitudinal-feed range: 0.08-0.56mm/r

Cross-feed range: 0.04-0.28mm/r

Max. travel of tailstock taper: 60mm

Tailstock sleeve taper: MT3

Spindle speeds range: 8 steps:90-1800r/min

Motor: 750W

Net weight (without base): 200/220kg, 230/250kg

Packing size (without stands): (L×W×H) 1450*650*1200mm 1200*650*1200mm
