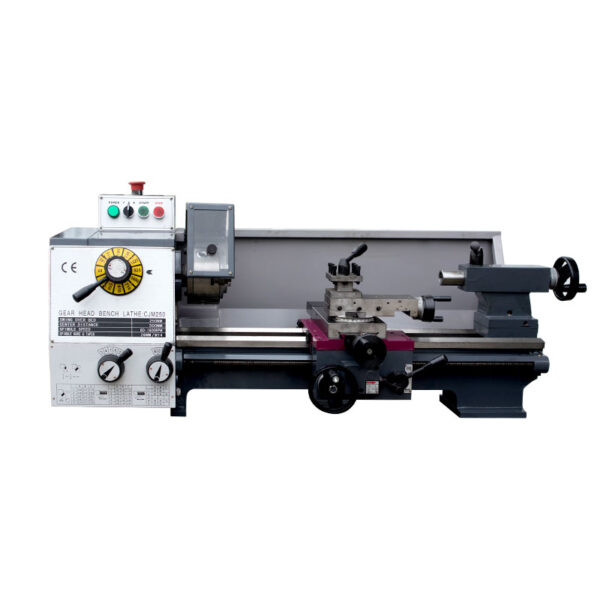

WMT CNC CJM250 Bench Lathe (750W)

Max. swing over the bed: 250mm

Max. length of work piece: 500mm

Max. swing over cross slide: 150mm

Spindle bore: 26mm

Spindle taper: MT4

Max. cross slide travel: 130mm

Max. longitudinal stroke over tool post: 60mm

Metric thread kinds: 9

Metric pitches: 0.25-2.5mm

Inch threads kinds: 15

Inch pitches: 12-96TPI

Longitudinal-feed range: 0.025-0.250mm/r

Cross-feedrange: 0.0125-0.125mm/r

Max. travel of tailstock taper: 60mm

Tailstock sleeve taper:MT3

Spindle speeds range: 12 steps: 80-2000r/min

Motor: 750W

Net weight (without base): 180/200kg

Packing size (without stands): (L×W×H) 1160x640x580mm
