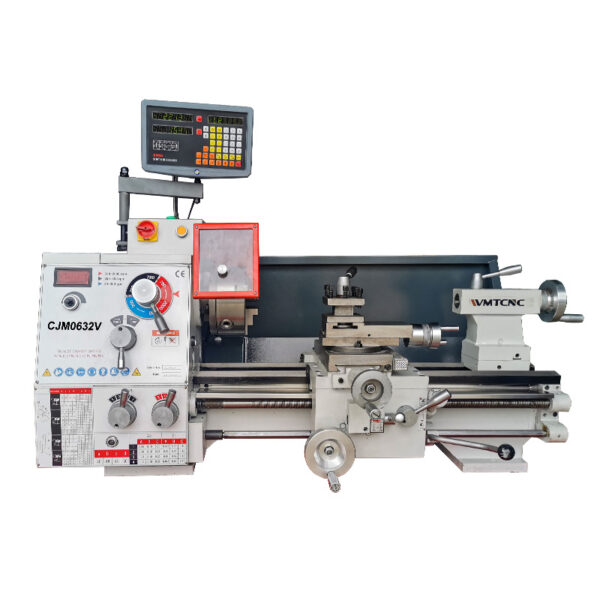

WMT CNC CJM0632V Bench Lathe (750W)

Max Swing diameter on the bed: 320 mm

Distance between center: 500/750mm

Max swing over cross slide: 180 mm

Spindle bore: 38 mm

Spindle taper: MT.5#

Max longitudinal travel over toolpost: 160 mm

Max cross slide travel over toolpost: 75 mm

Metric thread kinds: 18

Metric thread range: 0.20~3.5 mm

Inch thread kinds: 34

Inch thread range: 41/2～48 1/n″π

Longitudinal feed range: 0.08~0.56 mm/r

Cross-feed range: 0.04~0.28 mm/r

Max tailstock quill travel: 60 mm

Tailstock quill taper: MT.3#

Spindle speed kinds: 3 Kinds

Spidnle speed range: 30~2000 r/mim

Main motor: 750W 380V 50HZ (or 220V 50HZ)

Net weight(without stand): 30kg

Gross weight(without stand): 35kg
