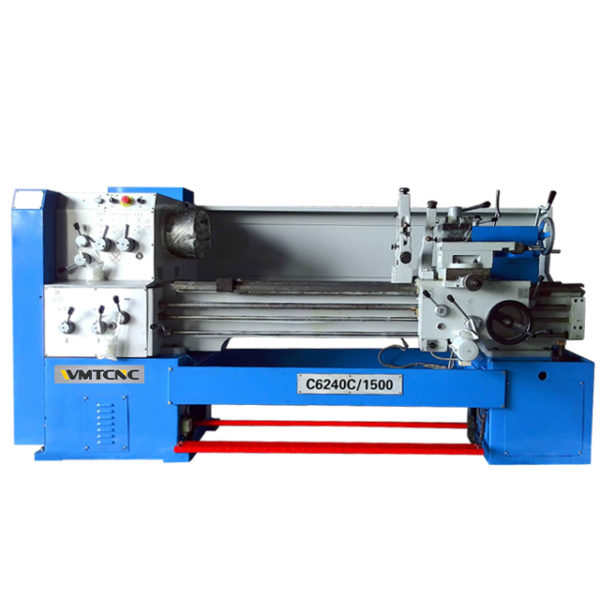

WMT CNC C6240C ເຄື່ອງກຶງເຄື່ອງຈັກ

Max.swing over bed: 400mm

Max.swing over cross slide: 230mm

Max.swing over gap: 560mm

Effective length of gap: CC: 160mm

Center Distance: 750/1000/1500/2000/3000

Bed Width: 360mm

Spindle hole: 52mm

Spindle nose: ISO-C6

Spindle taper: MT6

Spindle speed(Number): (9steps)40-1400rpm

Metric threads range: 19kinds 0.5-14mm

Inch threads range: 27kinds 2-40inch

Max.travel of cross slide: 200mm

Max.size of tool shank: 20×20mm

Dia.of tail stock sleeve: 65mm

Taper of tail stock sleeve: MT4

Max.travel of tail stock: 130mm

Main drive motor: 4kw or 5.5kw

Coolant pump motor: 125W

Packing size: 2250/2450/2880x110x1650mm
