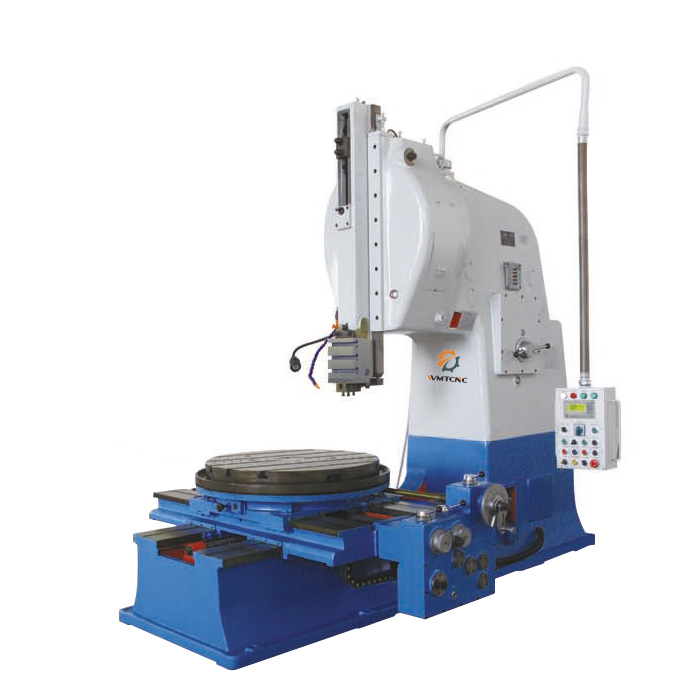

WMT CNC BC5050 ເຄື່ອງສະລັອດຕິງ (7.5kW)

Maximum cutting length(inserted hole 450 mm): 500mm

Table diameter: 1000mn

Worktable maximum longitudinal movement distance: 660nm

Worktable maximum lateral movement distance: 1000mm

Workbench maximum load: 2000kg

Distance from work surface to the lower end of the carnage: 740mm

Distance from the tool support surface to the front wall of the bed: 990mm

Ram adjustment distance: 430nm

Ram tilt angle (left and right direction): ±10deg

Number of ram reciprocation(minutes): 9.12.5.18.25.3650

Workable vertical and horizontal maneuvering feed rate map: 0.10.20.30.40.61.2

Working and turning maneuvering feed range(slipping once): 3’6’9’12’18’36

Maximum cutting force: 16000N

Main drive electric machine: 7.5kw, 1440rpm

Feed servo motor: 4.0kw

Cooling pump motor: 0.125kw2800r.p.m

Machine weight: 10.3T

Machine contour(length x width x height): 3480×2085×3307mm

Split package size: 3680/2260/1200/2250/1100/2250mm
