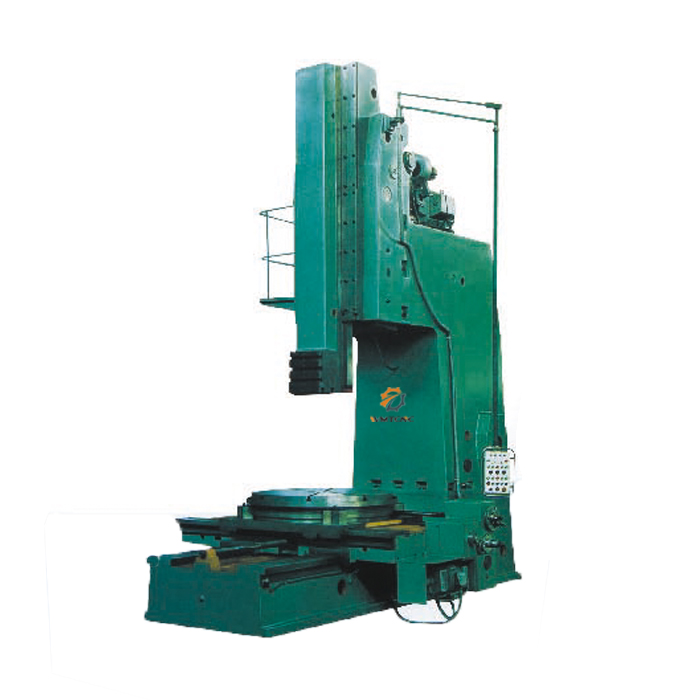

WMT CNC BC50125 ເຄື່ອງສະລັອດຕິງ (37kW)

Maximum cutting length(interpolated inner hole 850mm): 1250mm

Cutting stroke speed: 4-30m/min

Return travel speed: 7-30m/min

Main drive motor power: 37kw

Allow maximum cutting force(when the stroke speed is 16m-20m): 24500N

Table diameter: 1400mm

Maximum movement of the workbench: 1120mm

Distance from the tool support surface to the front wall of the bed: 1600mm

Feed range: 0. 2-3mm/double stroke

Landscape: 0. 2-3mm/double stroke

Circumference(on the circumference of 9700): 0.1-5mm/double stroke

Distance from work surface to the lower end of the carriage: 1650mm

Workbench fast moving longitudinal and horizontal: 500mm/min

Machine dimensions (length X width x height: 4600×3200×5300mm

Total machine weight(including electrical equipment: 26T
