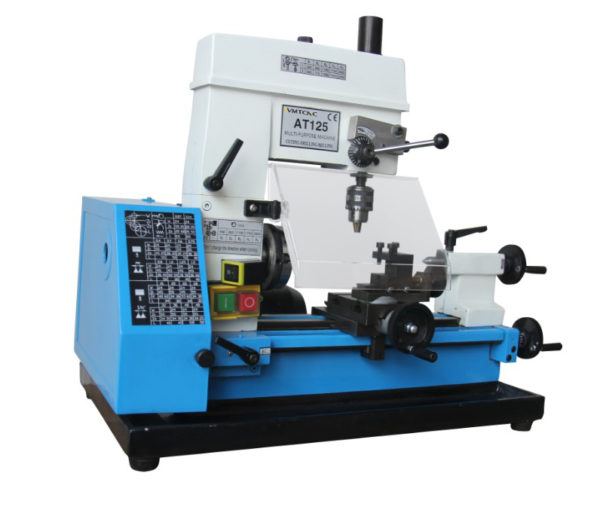

WMT CNC AT125 ເຄື່ອງກຶງປະສົມ (0.18kw)

Max swing diameter over bed: φ125mm(5″)

Max length of workpiece: 180mm(7″)

Max swing diameter over tool carrier: φ60mm(2-2/5″)

Spindle bore: 9mm(2-5″)

Taper of hole in spindle Morse: No. 1

Metric thread kinds on processing: 8

Metric thread pitch on processing: 0.8-1.5mm

Inch thread kinds on processing: 8

Inch thread pitch on processing: 16-481/n”

Longitudinal feed on spindle tool carrier: 0.07-0.14mm

Max stroke on taper hole: 18mm

Taper of hole in tailstock: No.1

Spindle speed step: 5

Spindle speed range: 560-2500r/min

Drilling and milling

Max drilling capacity: φ6mm(1-5″)

Distance from bench to spindle nose: 120-180mm

Distance from spindle center and column: 125mm(5″)

Swivel-angle of headstock around the column: 360°

Spindle speed step: 10

Spindle speed range: 500-2500rpm

Worktable dimension: 85×60mm

Taper of hole in milling spindle Morse: No.1

Stroke on spindle hole: 40mm(12-3/5″)

Electric motor: 0.18kw

Net weight: 22kg

Overall size: 570×340×480mm
