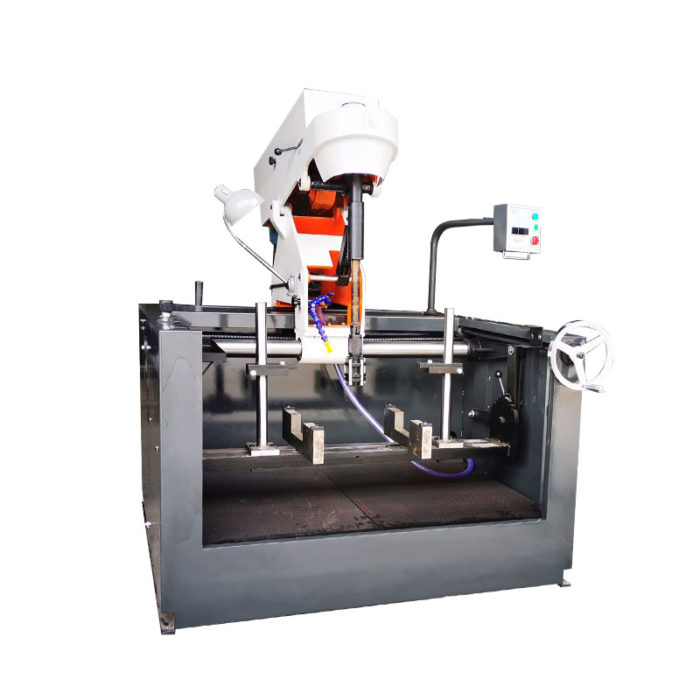

WMT CNC 3MB9817 ເຄື່ອງຈັກ Honing ກະບອກສູບ (1.5kW)

Honing hole diameter: 40-170mm

Maximum depth of honing hole: 320mm

Rotation of main shaft: 120,160,225,290r/min

Stroke of main shaft: 35,44,60s/min

Horizontal motion distance of main shaft: 900mm

Lifting height of machine table: 150mm

Power of main motor: 1.5kw

Voltage: 3～380V

Frequency: 50Hz

Power of cooling pump: 125w

Voltage: 3～380V

Overall dimensions (L×W×H): 1640×1670×1920mm

Weight of machine proper: 820kgs

Honing heads:

1) MFQ40: Φ40~Φ62

3) MFQ60: Φ60~Φ82

3) MFQ80: Φ80~Φ120

4) MFQ120: Φ120~Φ170
