Why Many Fiber Optic Network Faults Cannot Be Seen on an OTDR meter ?

When Optical Power Is Still Within Range but the Network Becomes Unstable

In many cases, the system continues operating, yet the connection quality becomes inconsistent. The fiber link is not physically broken. Optical power measured at the receiver still remains within acceptable limits. The OTDR meter  also shows no major abnormal events. However, users continue experiencing unusually slow network responses, fluctuating latency, or unstable access speeds.

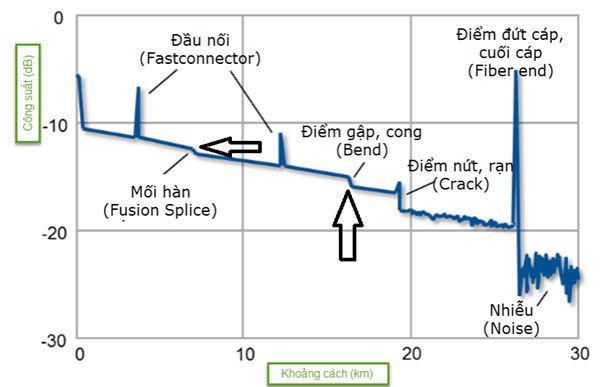

The root cause is often linked to very small defects such as:

Dirty optical connectors

• Slight increases in connector reflectance

• Fusion splices degrading over time

• Microbends in the fiber caused by temperature changes or mechanical pressure

• The Overlooked Blind Zone in OTDR Testing

When the OTDR launches a pulse of light into the fiber, strong reflective points such as connectors or splitters generate large back reflections. For a very short period after this reflection occurs, the OTDR receiver becomes nearly saturated and cannot accurately distinguish events that are located too close together.

In modern FTTH networks, the number of splitters, patch panels, and connectors continues to increase, making the spacing between optical events much shorter than before. If the OTDR has a large dead zone, multiple small events can overlap with each other, causing the trace to appear normal even though abnormal loss already exists within the link.

This is one reason why newer OTDR models are now heavily focused on reducing dead zones rather than simply increasing dynamic range as in the past.

Small Reflections Are Becoming a Major Issue in High-Speed Optical Networks

Previously, most technicians focused mainly on the total loss of the fiber link. However, in today’s high-speed optical systems, reflections have become one of the most difficult issues to detect.

These faults are especially challenging because: the system has not completely lost signal, optical power still appears normal, but network performance gradually degrades over time.

An optical connector may still deliver acceptable power levels while simultaneously generating enough back reflection to affect signal quality. This becomes particularly noticeable in high-speed transmission systems and dense optical networks.

In many real-world cases, unstable optical links are not caused by excessive insertion loss, but by reflectance gradually increasing over time due to dust contamination, oxidation, or connector surface degradation.

Ghost Reflections Cause Many Technicians to Misidentify Fault Locations

Ghost reflections are commonly found in PON networks with many splitters, excessive connectors, or poor-quality connections. This phenomenon occurs when reflected optical signals bounce repeatedly between multiple connectors or splitters along the fiber link. As a result, the OTDR may display an additional reflection peak at a location where no real event actually exists. In some cases, the displayed peak may even appear beyond the physical length of the fiber itself.

In today’s high-density optical networks, distinguishing between real reflections and ghost reflections has become an essential skill when analyzing OTDR data. Correct interpretation helps technicians avoid troubleshooting the wrong location, reducing operational costs and shortening service restoration time.

Why Launch and Receive Fiber Cables Still Play an Important Role

Fiber launch cables directly affect the OTDR’s ability to accurately measure connection points along the fiber link.

If a launch cable is not used, or if the launch fiber is too short, the first connector will fall completely inside the OTDR dead zone. In this situation, the OTDR can no longer accurately evaluate the reflectance and loss at the first connection point because the incoming reflected signal overlaps directly with the transmitted pulse. The actual fault may exist right at the first connector, which is often overlooked when a proper launch cable is not used.

Meanwhile, the receive fiber cable at the far end serves a different but equally important function. The receive fiber creates additional spacing behind the last connector of the fiber link, allowing the OTDR to separate the end reflection from the actual final connection point.

Without a receive fiber cable, the strong reflection generated at the end of the fiber often masks the final portion of the measurement trace. This makes it difficult for technicians to accurately evaluate the loss and reflectance of the last connector, especially in networks containing multiple patch panels or splitters.

In modern FTTH and PON networks, where connector density continues increasing, the use of both launch and receive fiber cables has become almost mandatory for accurate OTDR analysis and for avoiding hidden losses within the optical link.
