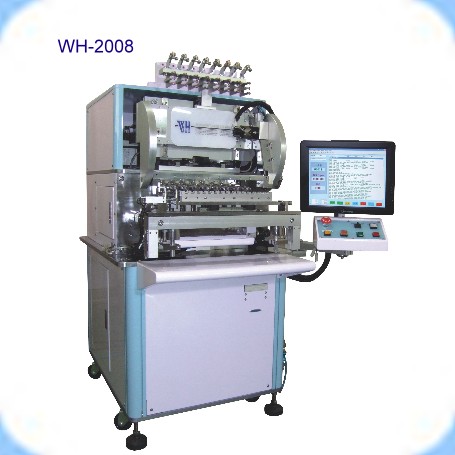

Wey Hwang WH-2008 8 Spindle Automatic Coil Winding Machine (18,000 rpm)
Control System: CNC 6 Axis AC servo motor synchronizing control
Storage Method: Windows interface PC with USB connector & DVD ROM
Winding Spindle: 8 spindle, spindle distance: 55mm
Winding Speed: 18,000 rpm (Max)
Spindle Angle: 360°/ turn,Setting unit = 0.1°
Stop Accuracy: ± 0.1∘
Nozzle Move Distance
X Axis 100mm, Moving unit = 0.001mm
Y Axis 75mm, Moving unit = 0.001mm
Z Axis 65mm, Moving unit = 0.001mm
Wire Size: 0.02mm - 0.3mm
Max. Winding Diameter: 45mm
Max. Spread Width: 85mm
Wrapping speed: Max 150 rpm
Wrapping Angle: 0° , 90° , and 120°
Twisting Length: Max 250 mm / Twisting machine is optional device
Twisting Number: 1.3.5.7...in odd number / Twisting machine is optional device
Power supply: Single-Phase 220V +/- 10%, 50/60 HZ
Power consumption: 3KVA
Air Supply: 4~6 kcf/cm2
Machine Dimension: 110( L ) x 130(W ) x 155( H ) cm
Machine Weight: 450 KGS
