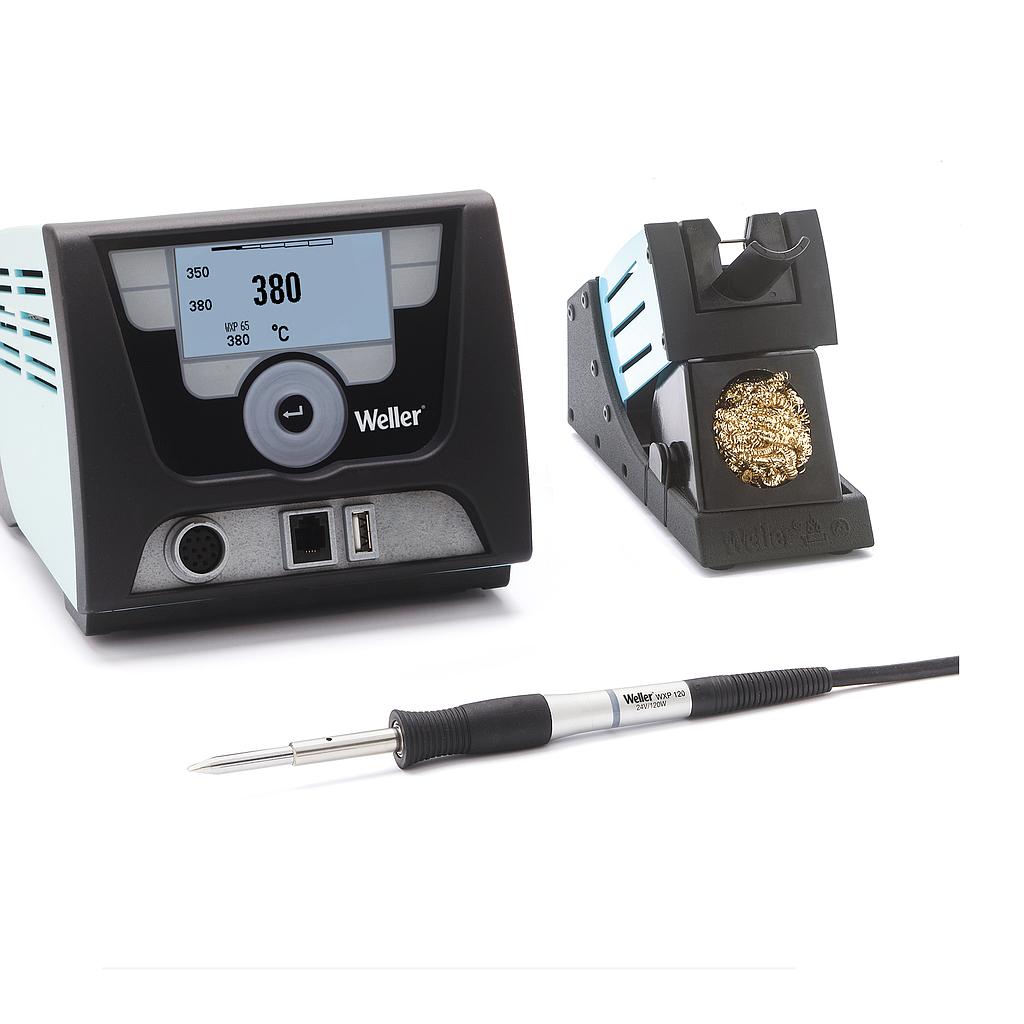

Weller WX 1010 Set Power unit with 1 channel

Name: Weller WX 1010 Set Power unit with 1 channel
Brand: WELLER

ModelWX1010 Set

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

WX 1010 Set Power unit with 1 channe
	This station is ESD safe.
Dimensions L x W x H:	170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch)
Weight:	approx. 3,2 kg
Channels:	1
Power supply:	230 V, 50 Hz
Power consumption:	200 W
Protection class:	I
Temperature range:	Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools
Temperature accuracy:	± 9°C (± 17°F)
Temperature stability:	± 2°C (± 4°F)
Equipotential bonding:	Via 3,5 mm pawl socket on back of device
Material touch panel:	Made of antistatic coated material
Dimensions touch panel:	74 x 38 mm
Resolution:	255 x 127 (128) dots
Display backlighting:	4 LEDs
Equipotentional bonding:	The 3,5 mm switch offers four different options: a) Hard grounded without plug (original delivery) b) Equipotential bonding: with plug, compensation line on center contact c) Potential free: with plug d) Soft grounded: with plug and soldered resistor grounded via selected resistor
USB interface:	USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types

WXP 120 Set Fast Response Heating Technology
Voltage (heater):	24 V
Heating output:	120 W
Heat-up time:	approx. 14 s 50°C - 380°C (120°F - 660°F)
Temperature range:	100°C - 450°C (212°F - 850°F)
Tip type:	XT series
Connectable to:	Weller WX Stations

Part number: T0053418699

Datasheet
