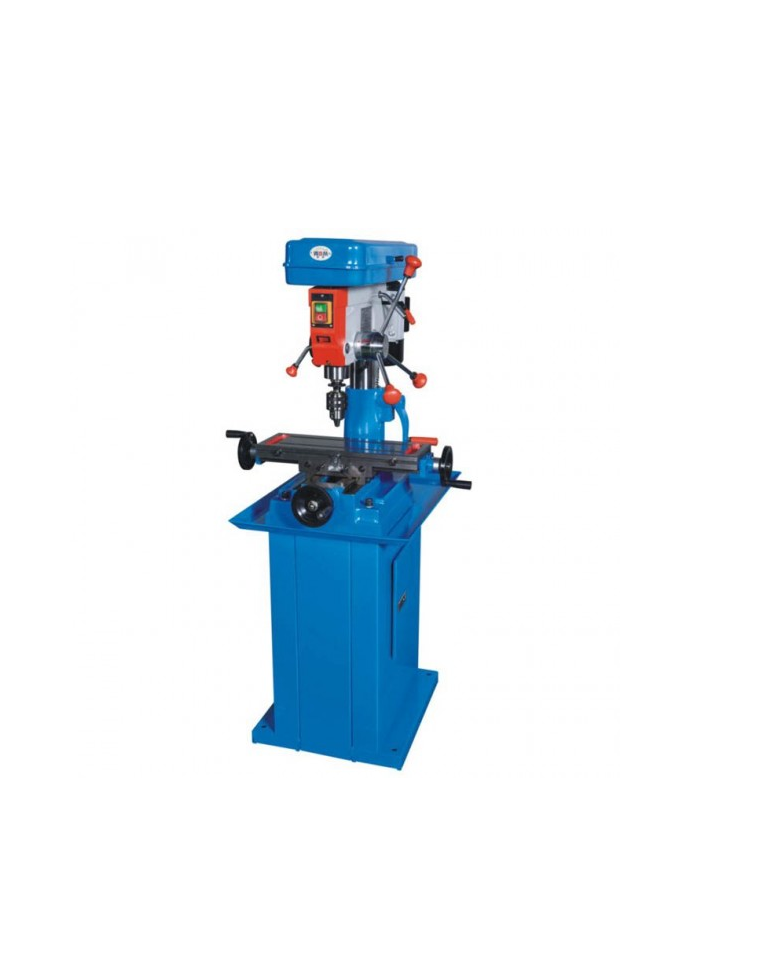

WDDM ZX7016 ເຄື່ອງຈອດແລະຕັດຫຼັກ

Working Capacity

Drilling capacity: Ø16 mm

Motor

Motor type: 4-pole squirrel cage rotor

Motor power: 550 W (4P)

Power supply: 220 V, single-phase, 50 Hz

Spindle

Spindle type: MT2 taper (Morse Taper No. 2)

Spindle travel (drill head): 80 mm

Speed

Number of speed levels: 12 steps

Spindle speed: 300 – 2870 rpm

Spindle speed change method: Pulley + Belt

Worktable

Worktable type: Cross table

Worktable size: 420 × 152 mm

Longitudinal travel: 230 mm

Cross travel: 120 mm

Dimensions & Weight

Machine height: 900 mm

Distance from spindle to table: 360 mm

Distance from spindle to column: 182 mm

Net weight: 75 kg
