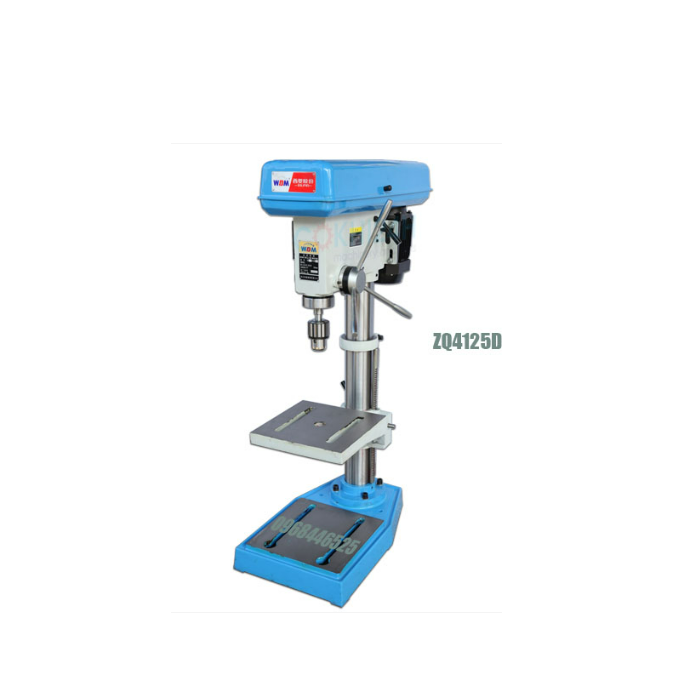

WDDM ZQ4125D ເຄື່ອງເຈາະ (1HP)

Drilling capacity: 25mm

Motor type: 4P squirrel cage rotor

Motor power: 1HP

Voltage: 380V 3 Phase 50 HZ

Spindle type: MT3 taper (3rd taper)

Spindle stroke (drill head): 75mm

Speed Levels: 9 levels

Spindle speed range: 200 - 2280v/p

Table type: Rectangular table

Working table size: 280x280mm

Number of grooves on the workbench: 2 grooves

Column diameter: 85mm

Distance from spindle to table: 480mm

Distance from spindle to base: 670mm

Distance from spindle to column: 200mm

Machine height: 1110mm

Packing dimensions: 1080x770x340mm

Weight: 98/105kg
