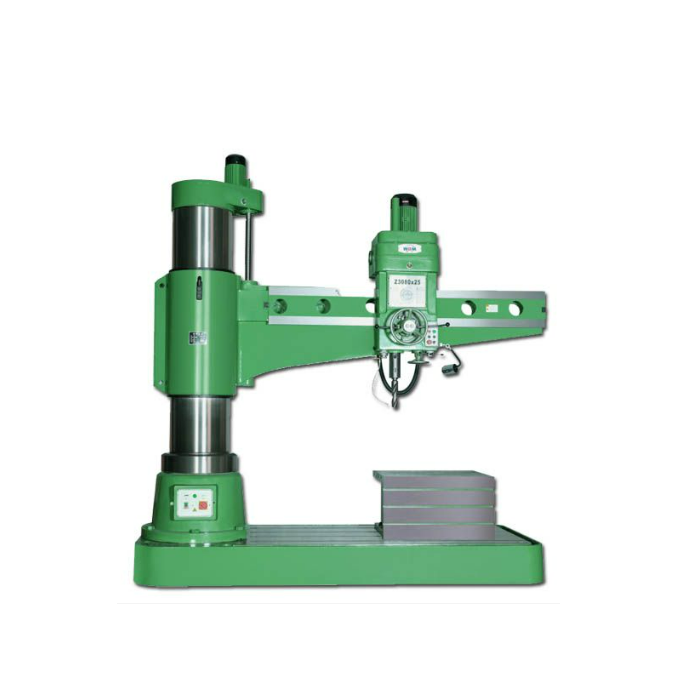

WDDM Z3080x25 ເຄື່ອງເຈາະ radial (7.5kW)

Max.drilling capacity (mm): 80

Distance spindle axis to column generating line (mm): 500-2500

Diameter of column (mm): 550

Spindle taper: MT6

Spindle travel (mm): 450

Spindle speeds range (r/min): 16-1250

Spindle speeds series: 16

Range of Spindle feeds (mm/r): 0.04-3.2

Mpindle Spindle feeds: 16

Distance spindle nose to working surface of base (mm): 550-2000

Dimension of worktable (mm): 1000X800X560

Dimension of base (mm): 3530X1400X300

Overall size (mm): 3730X1400X3790

Power of Main motor (kw): 7.5

G.W/NW (kg): 10450/10000

Packing dimension (cm): 387X162X223/373X154X153
