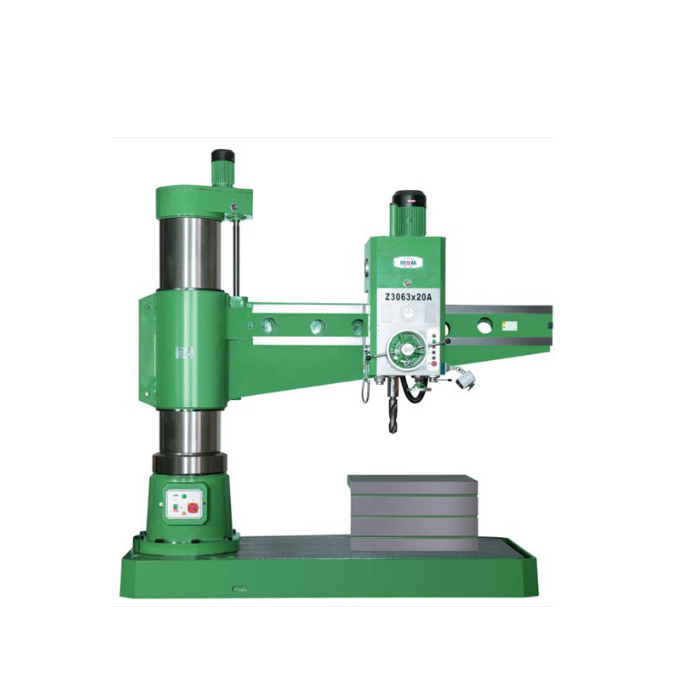

WDDM Z3063x25A ເຄື່ອງເຈາະ radial (5.5kW)

Drilling capacity: Ø63mm

Tapping capacity: M36

Motor power: 5.5kW

Spindle Type: MT5

Spindle stroke (drill head): 400mm

Cross stroke: 1600mm

Speed: 20-1600 rpm

Speed Levels: 16 levels

Spindle feeds: 0.04 - 3.2mm/r

Working table dimension: 950x630x500mm

Column diameter: 450mm

Distance from spindle to base: 450-2050mm

Maximum distance from spindle center to column: 2050mm

Minimum distance from spindle center to column: 450mm

Base dimension: 2900x1250x250mm

Machine dimension: 3110x1250x3150mm

Packing dimension: 3480x1470x2210mm

Weight: 6795/7145kg
