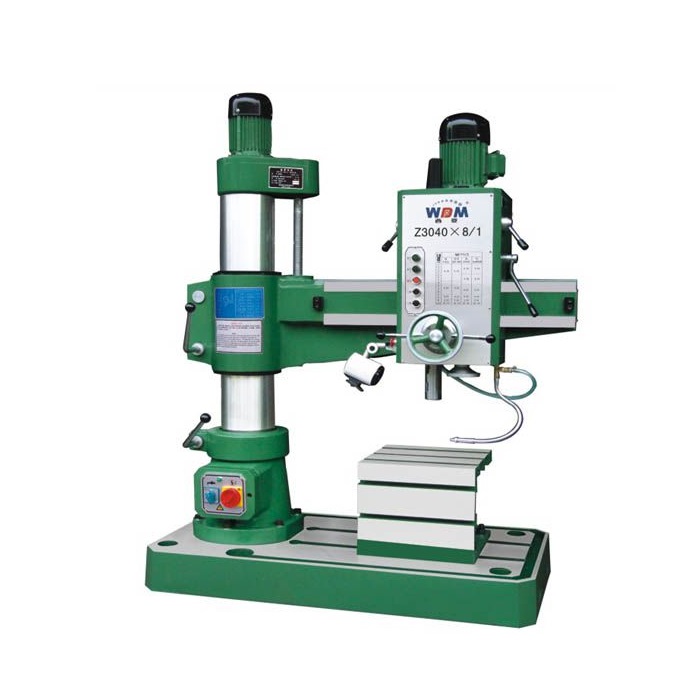

WDDM Z3040X8/1 ເຄື່ອງເຈາະ radial (1500W)

Drilling capacity: Ø40mm

Tapping capacity: M27

Motor power: 1500W

Spindle type: MT4

Spindle stroke (drill head): 240mm

Cross stroke: 500mm

Speed: 75-1220rpm

Speed levels: 6 levels

Spindle feeds: 0.1 - 0.16 - 0.25mm/r

Working table size: 400x400x350mm

Column diameter: 200mm

Distance from spindle to base: 120-860mm

Maximum distance from spindle center to column: 820mm

Minimum distance from spindle center to column: 320mm

Base dimension: 1370x720x160mm

Machine dimension: 1407x720x1885mm

Packing dimension: 1550x770x2100mm

Weight: 1140/1230kg
