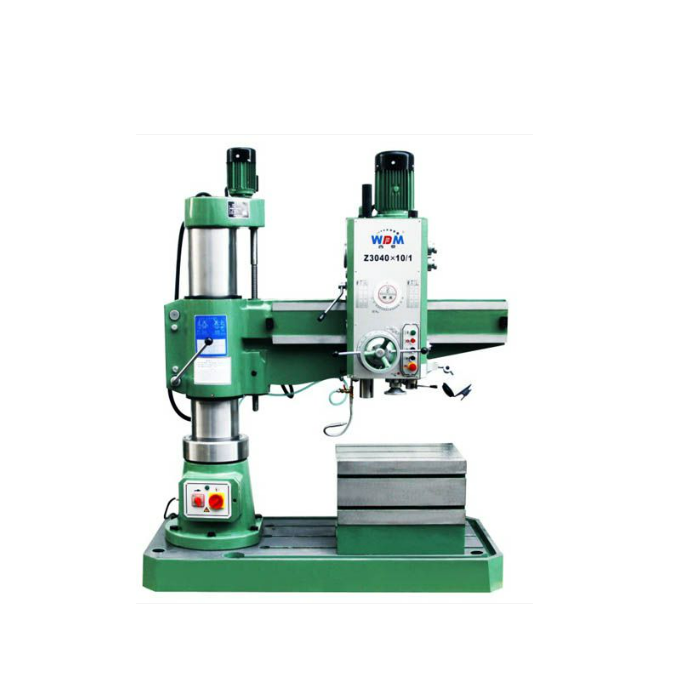

WDDM Z3040X10/1 ເຄື່ອງເຈາະ radial (1,5kW)

Max.drilling capacity (mm): 40

Distance spindle axis to column generating line (mm): 300-1000

Diameter of column (mm): 240

Spindle taper: MT4

Spindle travel (mm): 280

Spindle speeds range (r/min): 32-2500

Spindle speeds series: 16

Range of Spindle feeds (mm/r): 0.10-1.25

Mpindle Spindle feeds: 8

Distance spindle nose to working surface of base (mm): 220-1000

Dimension of worktable (mm): 600X450X450

Dimension of base (mm): 1710X800X160

Overall size (mm): 1760X800X2050

Power of Main motor (kw): 2.2

G.W/NW (kg): 1920/1830

Packing dimension (cm): 187X97X220
