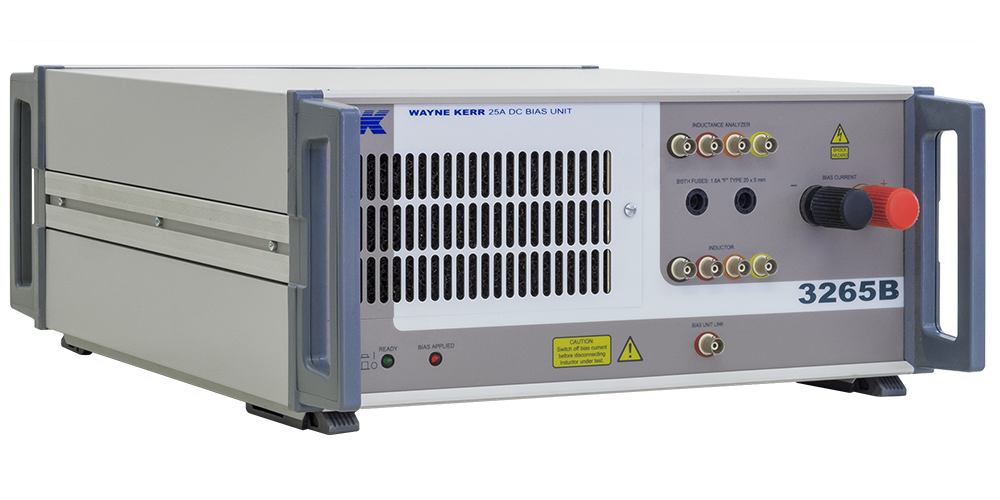

Wayne Kerr 3265B DC Bias ແຫຼ່ງປັດຈຸບັນ (20Hz ~ 3 MHz)
Measurement Function: L, Z, R, Q, D.
Frequency Range: 20 Hz to 3 MHz
Compliance Voltage:
Maximum compliance votage (<12 kHz) 11 V DC at 0.25 V AC drive level.
10 V compliance at 1 V AC drive level. For f>12 kHz deduct 0.5 V.
Basic Accuracyy: ±1%, Varies with measurement speed, frequency and options chosen.
Measurement Speeds: 4 speeds selectable (20/sec max)
Input Specification:
Universal 90 to 255 V AC, 47 to 63 Hz
Input current 9 A rms max.
Unit powers up automatically when connected to a powered analyzer. Isolating switch provided
Measurement Connections:
2-terminals measurement via M8 studs.
4-terminal measurement via Kelvin leads and M8 studs.
Measurement terminals internally protected by 1.6A fuses against
normal inductor back-EMF or accidental disconnection of inductor.
Front panel fuses easily replaced.
