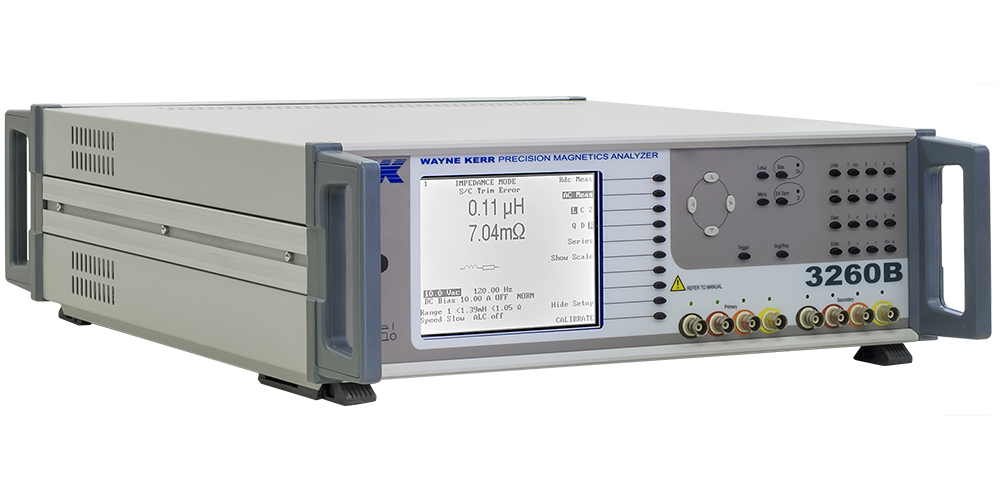

Wayne Kerr 3260B ເຄື່ອງວິເຄາະແມ່ເຫຼັກທີ່ຊັດເຈນ (20 Hz ~ 3 MHz)
Measurement Function: L, Z, Rdc, C, Q, D, Rac, Angle
Frequency Range: 20 Hz to 3 MHz Option
Drive Level:
1 mV to 10 V rms into open curcuit
50 uA to 200 mA rms into short circuit
Internal DC Bias Supply: 1 mA to 1 A
Insulation (Option): Test voltages 100 V, 200 V, or 500 V DC, user selectable
Measurement Speeds: 4 speeds selectable (20/sec max)
Measurement Ranges:
R 0.01 mΩ to > 2 GΩ
L 0.1 nH to >1000H
C 5 fF to > 1 F
Accuracy:
L/Rac/Z/Cp ±0.1%
Q ±0.1% (Q+1/Q)
D ±0.001 (1+ D2)
Turns ratio ±0.1%
Rdc ±0.5%
Input Specification:
Power supply 230 V AC ±10% or 115 V AC ±10% (selectable)
50 to 400 Hz
400VA maximum consumption
Display:
High contrast monochrome LCD 320 x 240 dot with CFL back lighting
Visible area 115 x 86mm
Viewing angle 45°
Measurement Connections:
8 front panel BNC sockets
2- or 4-wire (Kelvin) measurements with screen at ground potential
Equivalent circuit symbols on screen
Separate terminals for primary and secondary connections. Leds indicate active terminals
