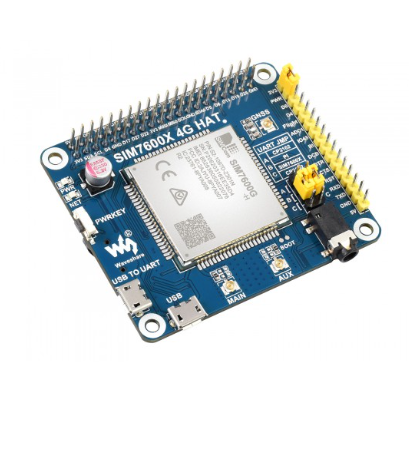

Waveshare SIM7600G-H 4G HAT ຮາດແວຕິດຢູ່ດ້ານເທິງ

Frequency band

LTE Cat-4

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66

LTE-TDD: B34/B38/B39/B40/B41

3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19

2G: GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GNSS

Satellite systems: GPS/Beidou/GLONASS/GALILEO/QZSS

Receiver type:

16-channel

C/A Code

Sensitivity:

-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)

Cold starts: -148 dBm

Time-To-First-Fix (open air)

Cold starts: <35s

Hot starts: <1s

SMS and Audio

SMS

Supported types: MT, MO, CB, Text, PDU

Storage: USIM card and ME (default)

Audio feature Supports echo cancellation

Supports noise reduction

Other

Power supply: 5V

Operating voltage: 5V / 3.3V (configured via jumper)

Operating temperature: -30°C ~ 80°C

Storage temperature: -45°C ~ 90°C

Dimensions: 56.21mm × 65.15mm
