Manufacturer: Vitrox
Model: V510i DUO
Warranty: 12 months

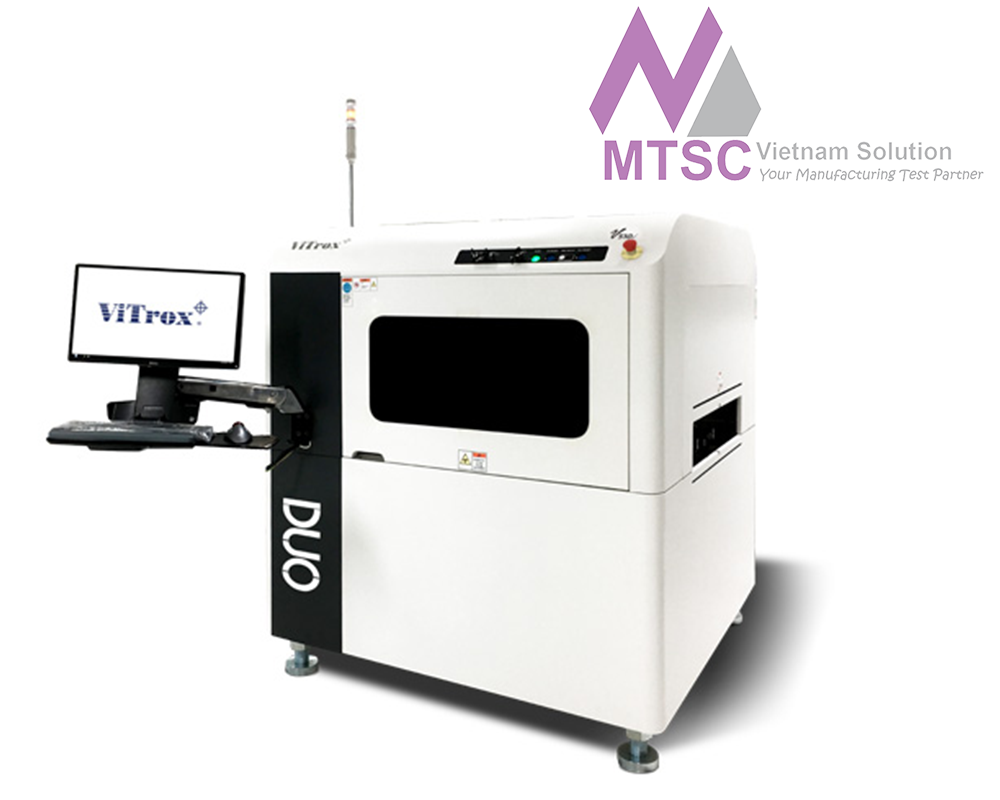

V510i DUO : Advanced Optical Inspection (AOI)
The V510i DUO AOI is a next generation solution for the SMT line, one click 2D+3D algorithms auto conversion.
2D MODE
PCB Dimension
Minimum PCB Size (L x W): 30x30mm (1.2”x1.2”)
Maximum PCB Size (L x W): DL Equal: 330x235mm (13”x9.2”); Single Lane: 330x420mm (13”x16.5”)
PCB Thickness: 0.5mm-4mm (0.02”-0.16”)
Maximum PCB Weight: 3kg (6.6lb)
Clearance
Top Side of PCB: 50mm (2”)
Bottom Side of PCB: 70mm (2.76”)
Panel Edge: 3.5mm (0.14”)
Maximum PCB Warpage Compensation: ±5mm (0.2")
PCB Transport Height: 856mm - 965mm (33.7”x38”)
System Performances
2D Inspection Functions: Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection)
3D Inspection Functions: Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Height Accuracy (Based on ViTrox Calibration Jig): ±2µm
System Hardware: 2D
Inspection Speed: 4MP @ 19μm resolution: 40-55cm²/sec
Camera & FOV Size: 4MP Camera Link Camera 38.5mmx38.5mm @ 19μm resolution
Optical Resolution: Default: Scalable from 21μm to 8μm for 01005 inspection
Lighting Module: Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration
Installation Specification
Width: 1340mm (4.4ft)
Depth: 1500mm (4.9 ft)
Height: 2060mm (6.8ft)
Weight: ~1100 kgs
Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase
3D MODE
PCB Dimension
Minimum PCB Size (L x W): 50x50mm (2”x2”)
Maximum PCB Size (L x W): DL Equal: 330x235mm (13”x9.2”); Single Lane: 330x420mm (13”x16.5”)
PCB Thickness: 0.5mm-4mm (0.02”-0.16”)
Maximum PCB Weight: 3kg (6.6lb)
Clearance
Top Side of PCB: 50mm (2”)
Bottom Side of PCB: 70mm (2.76”)
Panel Edge: 3.5mm (0.14”)
Maximum PCB Warpage Compensation: ±5mm (0.2")
PCB Transport Height: 856mm - 965mm (33.7”x38”)
System Performances
2D Inspection Functions: Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection)
3D Inspection Functions: Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Height Accuracy (Based on ViTrox Calibration Jig): ±2µm
System Hardware
Inspection Speed: 4MP @ 20μm resolution: 22-37cm²/sec
Camera & FOV Size: 4MP Camera Link Camera 40mmx40mm @ 20μm resolution
Optical Resolution: Default: 20μm telecentric lens; Option: 11μm telecentric lens
3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module: Concurrent Lighting Module
Installation Specification
Width: 1340mm (4.4ft)
Depth: 1500mm (4.9 ft)
Height: 2060mm (6.8ft)
Weight: ~1100 kgs
Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase
