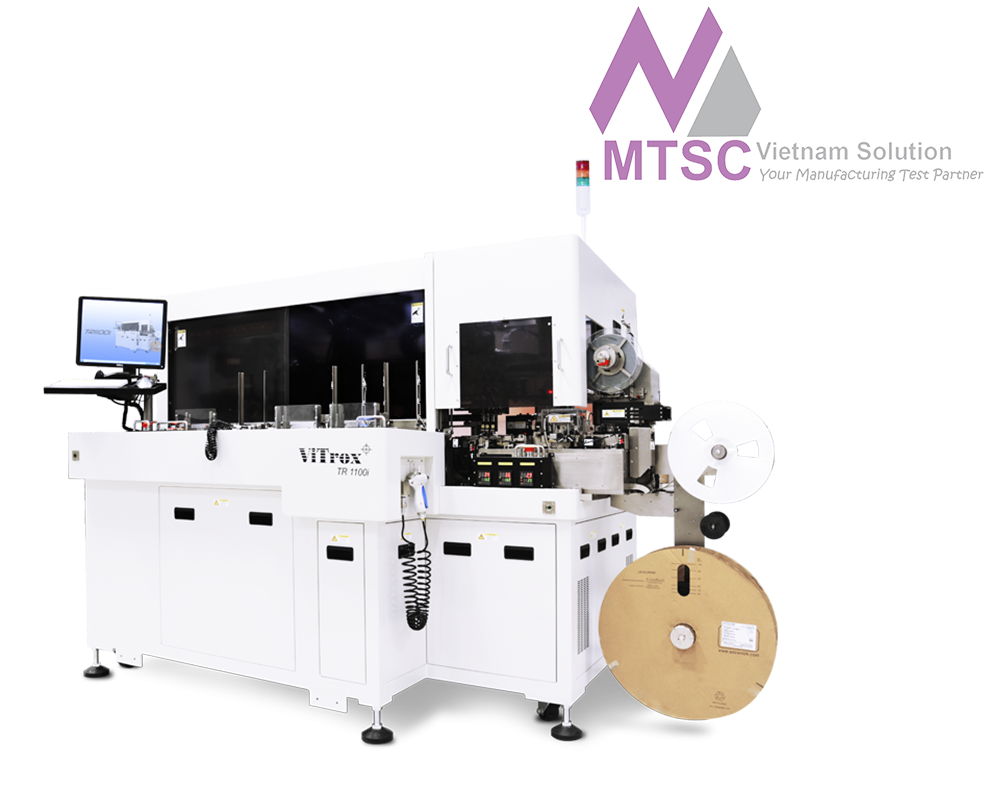

Vitrox TR1100i Tray to Reel Vision Handler

Manufacturer: Vitrox

Model: TR1100i

Warranty: 12 months

TR1100i : Tray-Based Vision Solutions

The TR1100i comes with built in taping module and tri-nozzle for faster unit pickup which translates to higher throughput of up to 18K (tray to tape)

Package Inspected: BGA, QFP, QFN, CSP, TSSOP, MSOP, SOP

Package Size: 2mm x 2mm to 42mm x 42mm

Tape Range: 8mm to 56mm

Handling Mechanism: Tray to Tape

UPH: Up to 18K

Taping Module Conversion Time: < 20 mins

De-Taping: Built-in De-Taping

Dual section X3 with warpage clamper: Yes

Vision Inspection: 3D vision inspection, Leaded Packages Inspection, Ball Packages Inspection, Leadless Packages Inspection, Top 3D POP Inspection, 2D Barcode Inspection, Mark Inspection, Package Vision Inspection, Passive Component Inspection, Top Color Inspection

Machine Dimensions (mm): 2067(H) x 2491(W) x 1431(L)
