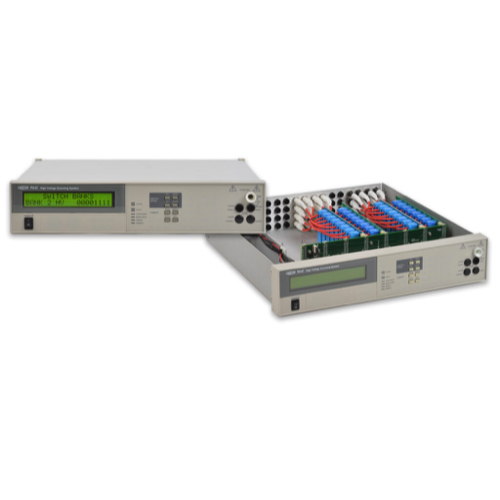

Vitrek 964i ລະບົບປ່ຽນແຮງດັນສູງ (3KV, 7KV, 10KV, 15KV)
High Voltage Ratings: 3KV, 7KV, 10KV or 15KV
High Current Ratings: 40 Amps
Up to 64 channels in a single compact unit
Relay Card Capacity: Eight cards
Front Input Terminals: 5 inputs
Rear Panel Terminals: 60 terminals
Interfaces: RS232 and VICL (Vitrek Hipot Control) standard; GPIB optional
Nominal Dimensions: 89mmH x 432mmW x 457mmD (3.5” x 17” x 18”)
Nominal Weight: Mainframe only 3.5Kg (8lb) net, 7Kg (16lb) shipping. Add 0.75Kg (1.5lb) per relay card
Storage Environment: -20 to 75°C (non-condensing)
Operating Environment: 0 to 50°C, <85% RH (non-condensing), Pollution Degree 2
Operating Altitude: 0 to 10000ft ASL
Line Power: 105-265Vrms, 45 to 450Hz, Category II using provided external power module
