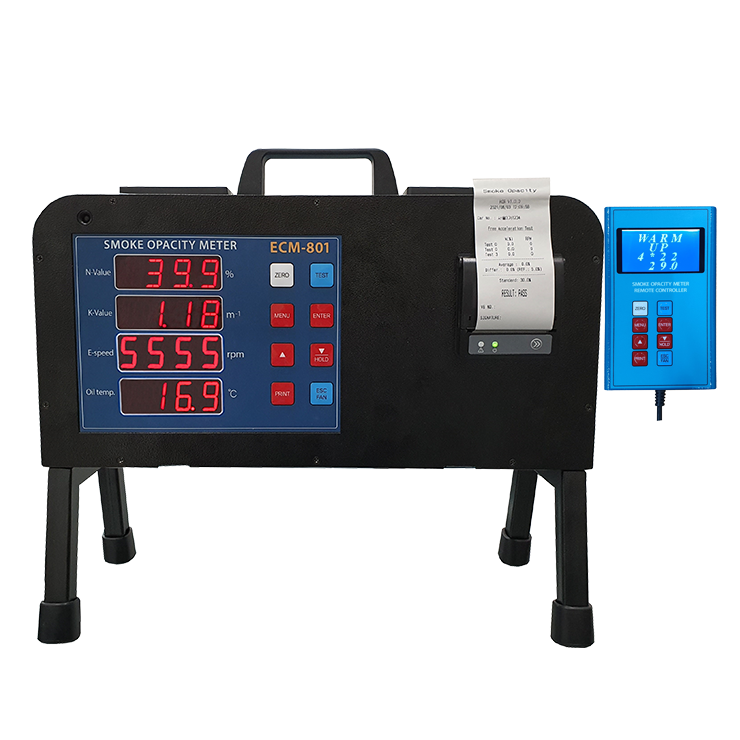

VISKOR ECM-801 Opacity SMoke Meter
Measurement items: Smoke concentration (Opacity), absorption coefficient(K-value)
Measurement method: Partial flow sampling method / Light transmission type
Photoelectric element: Green LED (565nm)
Detector: Photodiode
Tube Length / ID: Length: 215mm (± 0.5mm), ID.: 21mm
Measuring range: Opacity: 0% - 100%, K-value: 0.00 – 16.07m-1
Resolution: 0.1% / 0.01m-1
Accuracy: ±1%
Response time: 0.5 sec (90%)
RPM: 0-8000rpm
Resolution: 10rpm
Oil temperature: 0 ~ 150°C
Resolution: 1°C
Display: 4digit 16 Segments
Measurement speed/ display speed: 50 times/sec. 4 times/sec
Filter: Bezel low pass digital filter (0.5 second)
Preheating time: Within 5 minutes
Operating Temperature: -10 ~ 40°C
Power supply: AC 220V 50/60Hz
Option: Internal printer, wired remote controller, wireless application for mobile phone, RPM meter & Oil temperature meter, Standard filters
