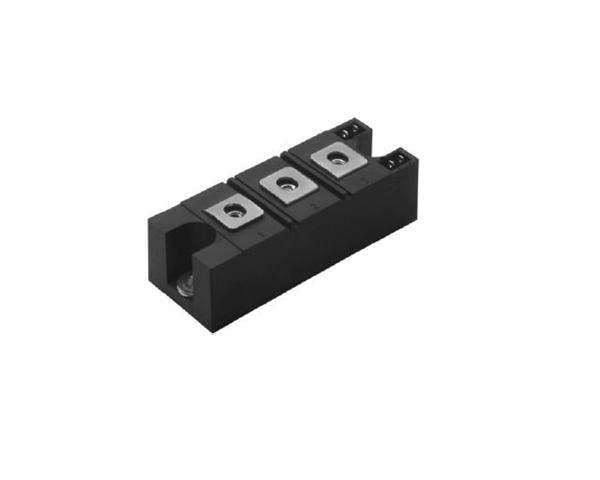

Vishay General Semiconductor VS-VSKT136/08PBF ໂມດູນ SCR 800 ໂວລ໌ 135 ແອມ

Technology: Si

Unit Weight: 200 g

Circuit Type: Thyristors / Thyristors

Current Rating: 135 A

Mounting Style: Screw Mount

On-State Voltage: 1.57 V

Holding Current Ih Max: 200 mA

Breakover Current IBO Max: 3.26 kA

Gate Trigger Current - Igt: 150 mA

Gate Trigger Voltage - Vgt: 2.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

On-State RMS Current - It RMS: 300 A

Non Repetitive On-State Current: 3.2 kA

Off-State Leakage Current @ VDRM IDRM: 50 mA

Rated Repetitive Off-State Voltage VDRM: 800 V
