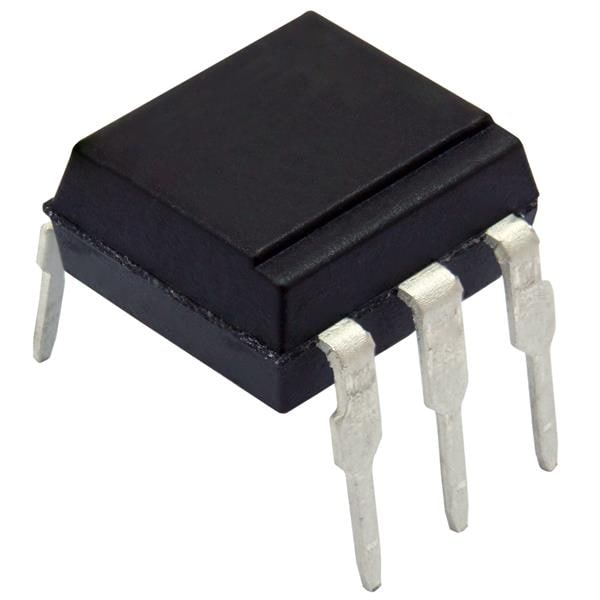

Vishay General Semiconductor VOT8123AG-V Triac & SCR Output Optocouplers ບໍ່ເປັນສະຫຼຸບ 800V Vrdm DIP6; 5000V Vrms

Output Type: PhotoTriac

Mounting Style: Through Hole

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.2 V

Zero-Crossing Circuit: Without Zero-Crossing Circuit

Pd - Power Dissipation: 330 mW

Maximum Trigger Current: 10 mA

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C

On-State RMS Current - It RMS: 100 mA

Off-state Output Voltage - VDRM: 800 V

Maximum Continuous Output Current: 100 mA
