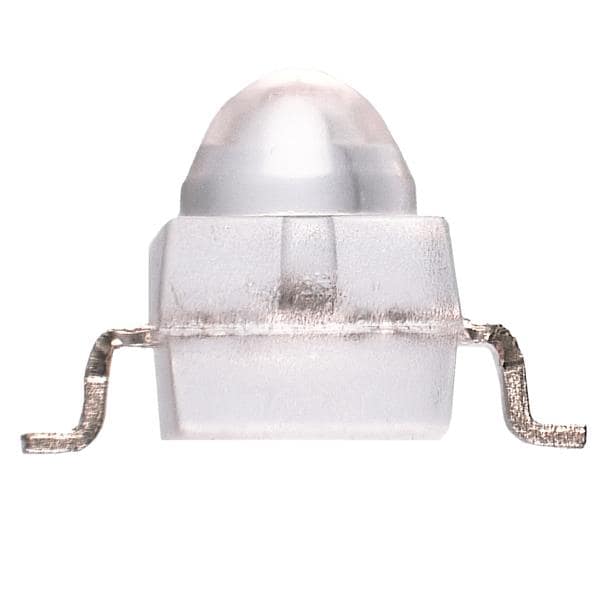

Vishay General Semiconductor VEMD2520X01 PIN Photodiodes Gullwing 350-1120nm +/-15 deg

Width: 2.3 mm

Height: 2.77 mm

Length: 2.3 mm

Fall Time: 100 ns

Rise Time: 100 ns

Unit Weight: 151 mg

Dark Current: 1 nA

Photocurrent: 12 uA

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Peak Wavelength: 900 nm

Moisture Sensitive: Yes

If - Forward Current: 50 mA

Vf - Forward Voltage: 1 V

Vr - Reverse Voltage: 60 V

Pd - Power Dissipation: 215 mW

Half Intensity Angle Degrees: 15 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
