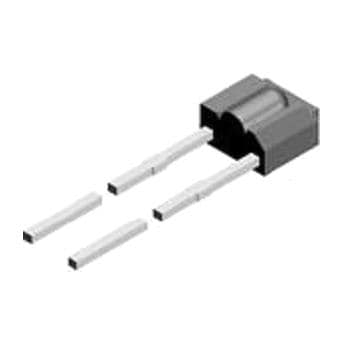

Vishay General Semiconductor TEST2600 ມຸມດ້ານຂອງຊິບ IR 850-980nm +/-30 deg

Width: 2.2 mm

Height: 3.1 mm

Length: 3.6 mm

Wavelength: 920 nm

Unit Weight: 159 mg

Dark Current: 100 nA

Light Current: 2.5 mA

Mounting Style: Through Hole

Peak Wavelength: 920 nm

Lens Color/Style: Black

Pd - Power Dissipation: 100 mW

Half Intensity Angle Degrees: 30 deg

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 50 mA

Collector- Emitter Voltage VCEO Max: 70 V

Collector-Emitter Breakdown Voltage: 70 V

Collector-Emitter Saturation Voltage: 300 mV
