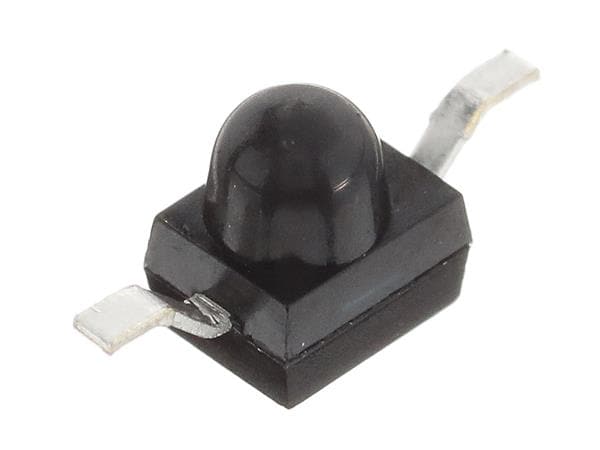

Vishay General Semiconductor TEMT1000 ເຊິບ IR Reverse gullwing 730-1000nm +/-15 deg

Width: 2 mm

Height: 2.7 mm

Length: 2.5 mm

Fall Time: 2.3 us

Rise Time: 2 us

Wavelength: 880 nm

Unit Weight: 219.127 mg

Dark Current: 200 nA

Light Current: 7 mA

Mounting Style: SMD/SMT

Peak Wavelength: 950 nm

Lens Color/Style: Black

Moisture Sensitive: Yes

Pd - Power Dissipation: 100 mW

Half Intensity Angle Degrees: 15 deg

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 100 mA

Collector- Emitter Voltage VCEO Max: 70 V

Collector-Emitter Breakdown Voltage: 70 V

Collector-Emitter Saturation Voltage: 300 mV
