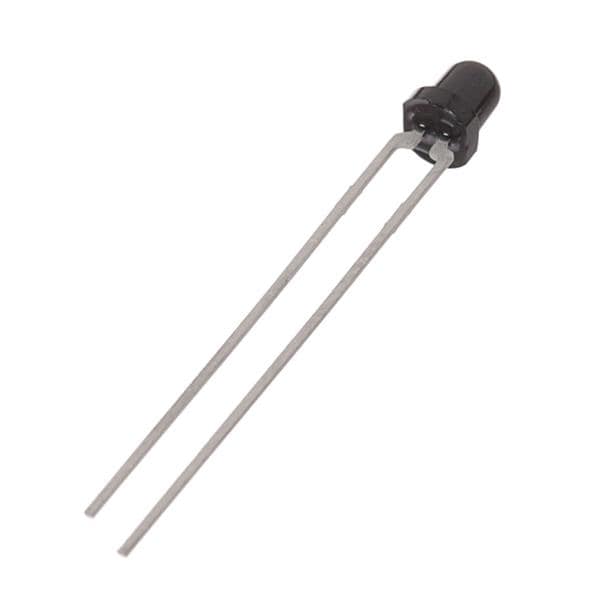

Vishay General Semiconductor TEFT4300 IR Chip T-1 875 to 1000nm +/-30 deg

Width: 3.9 mm

Height: 4.5 mm

Length: 3.2 mm

Wavelength: 925 nm

Unit Weight: 158 mg

Dark Current: 200 nA

Light Current: 3.2 mA

Mounting Style: Through Hole

Peak Wavelength: 925 nm

Lens Color/Style: Black

Pd - Power Dissipation: 100 mW

Half Intensity Angle Degrees: 30 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 50 mA

Collector- Emitter Voltage VCEO Max: 70 V

Collector-Emitter Breakdown Voltage: 70 V

Collector-Emitter Saturation Voltage: 300 mV
