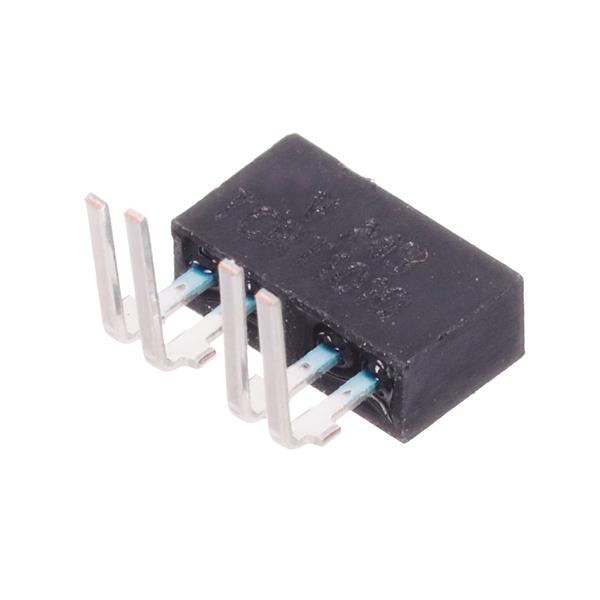

Vishay General Semiconductor TCRT1010 ສະຫນັບສະຫນູນແບບແສງ, ຕົວອອກ Phototransistor ສະຫນັບສະຫນູນກັບຕົວອອກ Transistor

Width: 4 mm

Height: 2.5 mm

Length: 7 mm

Wavelength: 950 nm

Output Type: Phototransistor

Unit Weight: 212.500 mg

Mounting Style: Through Hole

Sensing Method: Reflective

Sensing Distance: 0.2 mm to 4 mm

Number of Channels: 1 Channel

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.25 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 200 mW

Maximum Collector Current: 50 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 32 V
