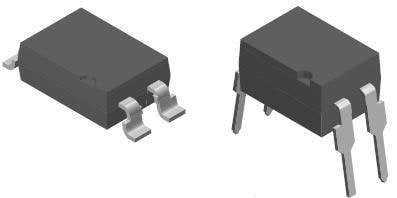

Vishay General Semiconductor SFH6156-2X001 ອອບຕູຄູເລີ Optocouplers ອອບຕູພອດ Transistor ເອັກຄະລິກ CTR ເທົ່າ > 63-125%

Width: 6.81 mm

Height: 3.81 mm

Length: 4.83 mm

Fall Time: 14 us

Rise Time: 3 us

Output Type: NPN Phototransistor

Unit Weight: 90 mg

Configuration: 1 Channel

Mounting Style: SMD/SMT

Isolation Voltage: 5300 Vrms

Number of Channels: 1 Channel

If - Forward Current: 60 mA

Vf - Forward Voltage: 1.65 V

Vr - Reverse Voltage: 6 V

Current Transfer Ratio: 63 %

Pd - Power Dissipation: 150 mW

Maximum Collector Current: 100 mA

Current Transfer Ratio - Max: 125 %

Current Transfer Ratio - Min: 63 %

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 70 V

Maximum Collector Emitter Saturation Voltage: 400 mV
