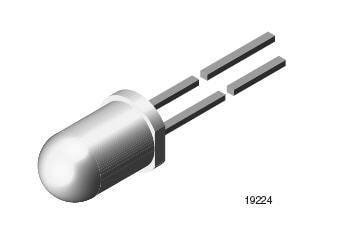

Vishay General Semiconductor BPW96B ຊິບ T-1.75 450 ຫາ 1080nm +/-20 ອົງສາ

Width: 5.75 mm

Height: 8.6 mm

Length: 5.75 mm

Wavelength: 850 nm

Unit Weight: 383.324 mg

Dark Current: 200 nA

Mounting Style: Through Hole

Peak Wavelength: 850 nm

Lens Color/Style: Clear

Pd - Power Dissipation: 150 mW

Half Intensity Angle Degrees: 20 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 50 mA

Collector- Emitter Voltage VCEO Max: 70 V

Collector-Emitter Saturation Voltage: 300 mV
