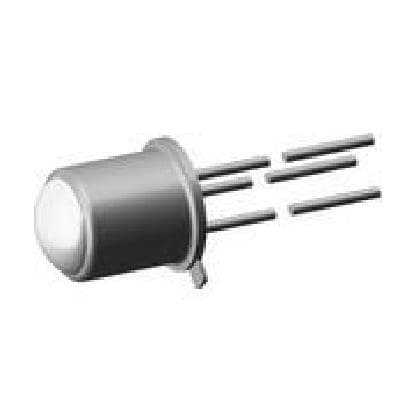

Vishay General Semiconductor BPW77NA ຊິບ TO-18 450-1080nm +/-10 deg

Width: 5.5 mm

Height: 6.15 mm

Length: 5.5 mm

Wavelength: 850 nm

Unit Weight: 505.850 mg

Dark Current: 100 nA

Light Current: 15 mA

Mounting Style: Through Hole

Peak Wavelength: 850 nm

Lens Color/Style: Clear

Pd - Power Dissipation: 250 mW

Half Intensity Angle Degrees: 10 deg

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 50 mA

Collector- Emitter Voltage VCEO Max: 70 V

Collector-Emitter Breakdown Voltage: 70 V

Collector-Emitter Saturation Voltage: 150 mV
