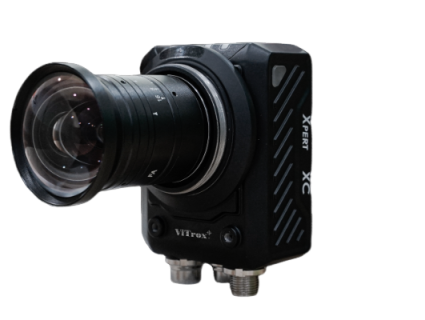

ViE Technologies XC-330 ກ້ອງຖ່າຍຮູບອັດສະລິຍະຂັ້ນສູງ (26.2 MP, 5120 × 5120)

Camera

Sensor: CMOS (Global Shutter)

Mega Pixel (MP): 26.2

Resolution: 5120 × 5120

Maximum Frame Rate (FPS): 20

Pixel Size: 2.5 μm × 2.5 μm

Sensor Size: 1.1"

Pixel Format: Mono 8

Tool

Main Category: Featured Tools *5

Vision Tool

Locating: Position Fixture, Template/Contour Match, Circle/Line Search, Blob Analysis

Image Generating: Circle/Line Fit, Geometry Generation

Measurement: L2C/C2C/P2C Measurement, Edge Distance, Pixel Count, Histogram

Recognition: OCR, DL Code Reading, DL Character Recognition & Locating

Calibration: CalibBoard/N-point/Translation/Distortion/Mapping Calibration

Register Learning: Register Classifier/Detect/Segment NPU

Calculation: Single Point Alignment/Rectify, Rotate Calculate, Coordinate Transform

Image Processing: Filter, Ring Expansion, Enhancement, Stitching, Distortion Correction

Split Combination: Scribing Split, 2D Array Correct, Box Merge/Overlap/Filter

Color Processing: Color Extraction/Transformation/Recognition, Color Measurement

Defect Detection: Surface/Arc/Line/Edge/Anomaly Detection

Deep Learning Tools: Image Segmentation, Classification, and Object Detection

Logic Tool: Python Script, Condition-Branch, Group, Logic Module, String Comparison

Communication Tool: Camera IO, Protocol Parsing/Assembly, Send/Receive Data

Total Tools: 134

I/O Specifications

Isolated Control Input

Number of Inputs: 2

Isolated Control Output

Number of Outputs: 2

Configurable Bi-directional IO

Number: 2

Ethernet

Supported Protocol: TCP, UDP and FTP

Serial Communication

Communication Standard: RS-232C Compliant

Extended Interface: One VGA and one USB host

Mechanical

Lens Mounting: C-mount

Lens Cap: Transparent lens cap [fit for lens size within φ48 mm × 62 mm (φ1.8898" × 2.4409")]

Camera Lens: Not included (Purchase separately via options)

Light Source: Not included (Purchase separately via options)

Installation Specification

Weight: Approx. 545 g (1.2015 lb.)

Dimension (L × W × H): 116.30 mm × 68.60 mm × 101.80 mm (4.5787" × 2.7008" × 4.0079")
