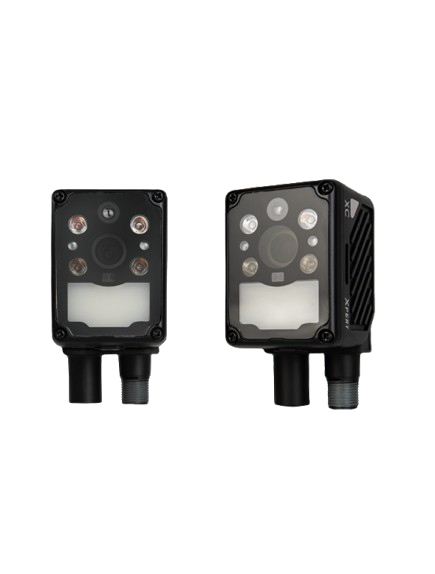

ViE Technologies XC-130C ກ້ອງຖ່າຍຮູບອັດສະລິຍະ (CMOS, 2432 × 2048 (5.0 megapixels),3.45 μm × 3.45 μm)

Camera:

Sensor: CMOS (Global shutter)

Resolution: 2432 × 2048 (5.0 megapixels)

Maximum Frame Rate (FPS): 40

Pixel Size: 3.45 μm × 3.45 μm

Sensor Size: 1/1.45″

Dynamic Range: 77.8 dB

Signal-to-Noise Ratio (SNR): 43 dB

Gain: 0 dB to 15 dB

Exposure Time: 6 μs to 1 sec

Pixel Format: Mono 8, RGB 8

Vision Tool

Count: Color Count, Spot Count, Pattern Count, Contour Count

Detection: Defect Detection, Object Detection, Classification

Existence: Spot Existence, Pattern Existence, Line Existence, Circle Existence, Edge Existence

Measurement

Color Area Measurement, Color Measurement, Width Measurement, Edge Width Measurement, Diameter Measurement, Line-to-Line Angle Measurement, Average Brightness Measurement, Contrast Measurement, Grayscale Area Measurement, Line-to-Axis Angle Measurement

Recognition: Color Contrast, OCR, Code Recognition

Locate: Scale Transform, Position Fixture

Logic Tool: IF Module, Condition Judge, Combination Judge, Logic Judge, String Comparator, Formula Calculator

Mechanical:

Lens Mounting: M12-mount

Focus: Mechanical Auto Focus

Focal Length

Standard Range: 8 mm (0.3149″)

Long Range: 12 mm (0.4724″)

Extended Range: 16 mm (0.6299″)

Extended Long Range: 25 mm (0.9842″)

Lens Cap: Polarized + diffused + full-transparent lens cap

Illumination Light Source Option: White spot light source. Red/blue/infrared point light source is optional*1

Diffuse Light Source: White

Pointer Light Source: Orange LED*1

Environment Resistance

Enclosure Rating IP67*2

Surrounding Temperature 0 °C to +45 °C (32 °F to 113 °F)

Ambient Storage Temperature -30 °C to +70 °C (-22 °F to 158 °F)

Relative Humidity 20 % to 95 % RH (No Condensation)

Ambient Storage Humidity 20 % to 95 % RH (No Condensation)

Operating Environment No Corrosive Chemical or Gas Present

Includes:

i) M3 Screw (3pcs)

ii) Mounting Bracket (1pc)

iii) 5 meter Network Cable (1pc)

iv) 5 meter M12 Cable (1pc)

v) Vision Xpose Software (1pc)
