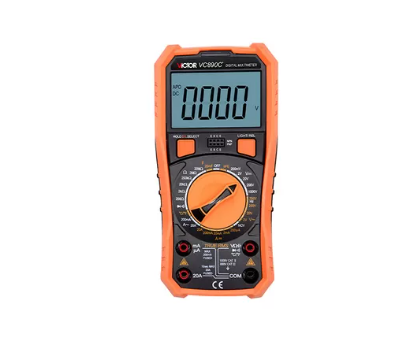

VICTOR VC890C+ Digital Multimeter (1000VDC, 750VAC, 20ADC/AC, True RMS)

DCV

200mV/2V/20V/200V±(0.5%+3)

1000V±(0.8%+10)

ACV

2V/20V/200V±(0.8%+5)

750V±(1.2%+10)

DCA

200uA/2mA/20mA±(0.8%+10)

200mA±(1.2%+8)

20A±(2.0%+5)

ACA

200mA±(2.0%+5)

20A±(3.0%+10)

Resistance

200Ω±(0.8%+5)

2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+3)

20MΩ±(1.0%+25)

Capacitance

6nF±(5.0%+40)

60nF/600nF/6uF/60uF±(3.5%+20)

600uF/6mF/20mF±(5.0%+10)

Celsius(-20～1000)℃ (-4～1832)℉ <400℃±(1.0%+5) / ≥400℃±(1.5%+15)

Feature

Diode & Continuity test√

Backlight√

Continuity buzzer√

Low battery indication√

Auto power off√

Function protection√

200mA/20A Protection√

TRUE RMS√

NCV measurement√

Torch function√

Shock proof protection√

Input impedance:About 10MΩ

Sampling rate:3 times/s

Frequency response:(40-1000)Hz

Operation way:Manual Range

Max. Display:1999

LCD size:61 x 36mm

Battery:2*1.5V AA LR6

General Characters

Product ColorL:Case: black ; Holster color:orange

Product Net Weight:Approx . 358g (including battery)

Product Dimension:178*86*52mm

Standard Accessories:Test leads, battery, manual, K-type probe
