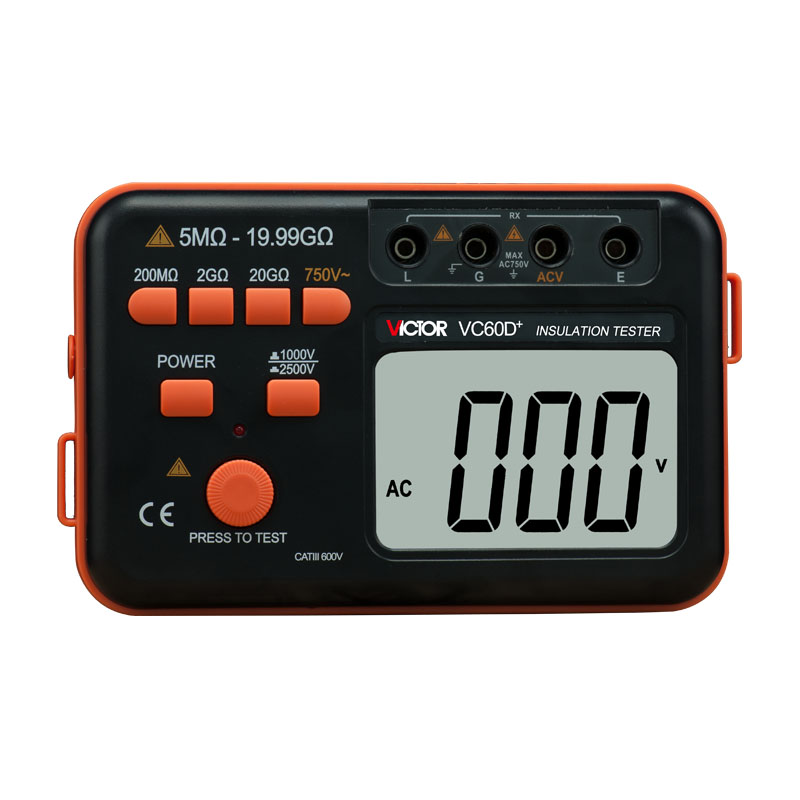

VICTOR VC60D+ ເຄື່ອງທົດສອບສນວນ

Measuring voltage: 1000V / 2500V ±10%

Test current (median): < 4 mA

Insulation resistance (1000V):

200 MΩ: 6 – 199.9 MΩ ±(5% ±5 digits)

2 GΩ: 0.06 – 1.999 GΩ ±(5% ±5 digits)

20 GΩ: 0.6 – 19.99 GΩ ±(5% ±5 digits)

200 MΩ: 5 – 199.9 MΩ ±(5% ±5 digits)

Insulation resistance (2500V):

2 GΩ: 0.05 – 1.999 GΩ ±(5% ±5 digits)

20 GΩ: 0.5 – 19.99 GΩ ±(5% ±5 digits)

AC voltage measurement: AC 750V ±(1% ±6 digits)

Jack positions:

Insulation resistance: L, E

AC 750V: ACV, G

Overload indication: Yes

Auto power off: Yes

Maximum display: 1999

Product dimensions: 175 × 110 × 70 mm

Net weight: Approx. 720 g (including battery)

Power supply: AA battery (LR6 1.5V) × 8

Operating temperature: 0°C – 40°C

Relative humidity: 30%RH – 85%RH

Special function: VC60D+

Low battery indication: Yes

Alarm function: Red indicator light illuminated

Unit symbol display: Yes

Over-range display: “1”
